Advance Tabco Triumph (Supreme) 5-Well Drop-In Electric Sealed Hot Food Well with Drains, 208/240V

SKU: DISW-5-240
GTIN: 747545182692
$4,151.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

Advance Tabco Triumph (Supreme) 5-Well Drop-In Electric Sealed Hot Food Well with Drains, 208/240V

Wet operation, remote panel, and individual infinite controls

Keep five full-size pans hot and ready with a durable drop-in electric well built for wet or dry operation and precise individual control.

  • Five sealed wells sized for full-size 12 Inches x 20 Inches pans.
  • Wet-operation design is supplied with drains and can also be used for dry application.
  • Remote control panel with individual infinite controls and indicator lights.
  • 18-gauge #304 stainless steel self-rimmed top with a 20-gauge galvanized body.
  • Fiberglass insulation between compartments helps retain heat.
  • Hard-wired 208/240 Volt electrical setup with 4.125 kW at 208 Volts and 5.5 kW at 240 Volts.
  • Accommodates pan inserts up to 6-1/4 Inches deep.

Overall Dimensions:

72.5"W x 24.5"D x 15.44"H

Product Weight:

208.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

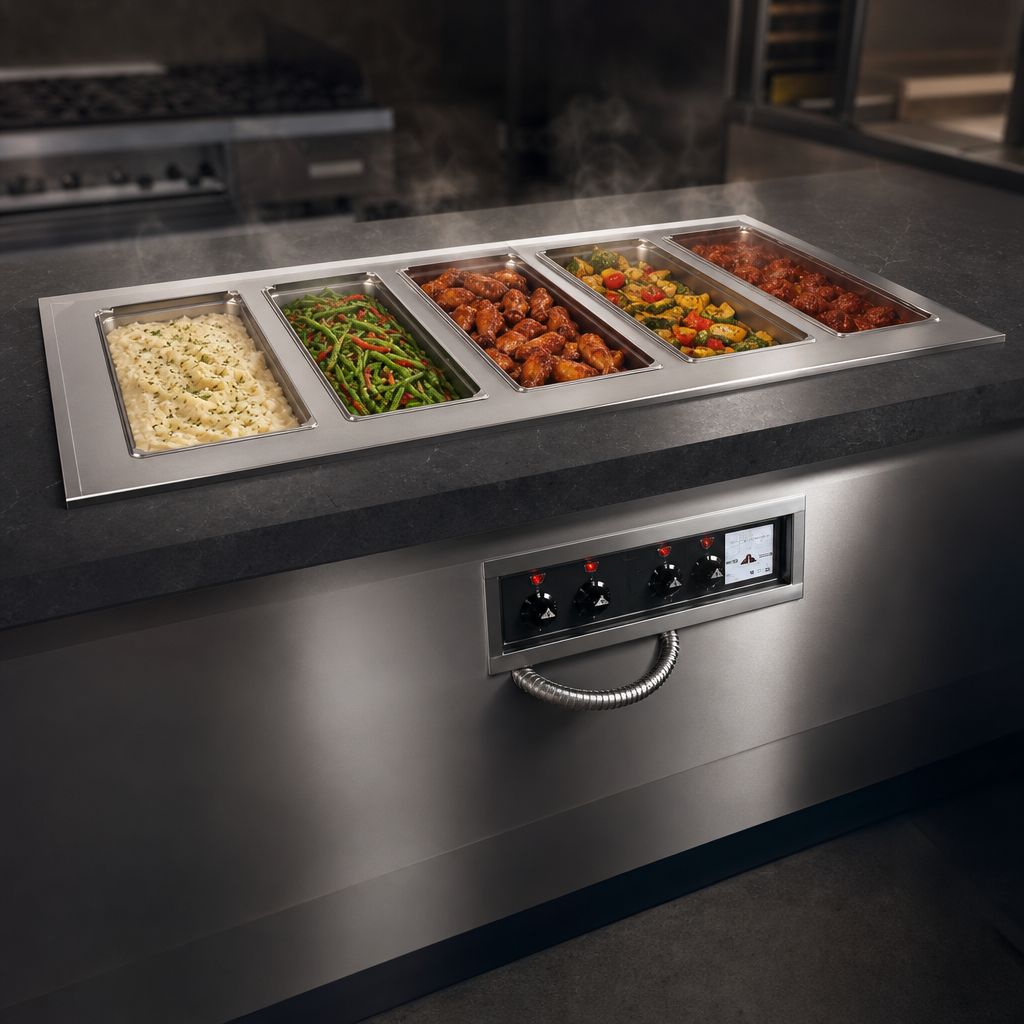

Five Sealed Wells

Holds five full-size 12 Inches x 20 Inches pans for high-volume hot food service.

Wet or Dry Operation

Supplied with drains for wet applications and usable for dry operation as well.

Remote Control Panel

Separates the controls from the well area for easier operation and serviceability.

Individual Infinite Controls

Each well is controlled independently with infinite heat adjustment.

Indicator Lights

Visual indicators help show when the unit is powered and operating.

Stainless Steel Top

Features an 18-gauge #304 stainless steel self-rimmed top with die-stamped pan openings.

Insulated Construction

Fiberglass insulation between compartments helps hold temperature more effectively.

Drain System

Includes 1/2 Inch I.P.S. drain(s) with gate valve for wet operation.

Field-Wired Installation

Unit is hard wired in the field; optional cords are available.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 5
Pan Size 12 Inches x 20 Inches
Controls Infinite Controls
Voltage 208/240 Volts
Amps 19.85/22.90 Amps
Watts 4.125 kW / 5.5 kW
Material Stainless Steel
Shipping Width 73 Inches
Shipping Depth 25 Inches
Shipping Height 16 Inches
Shipping Weight 208 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Diagram PDF Download

Frequently Asked Questions

Yes. It is supplied with drains for wet applications and can also be used for dry application.
This model has five sealed wells.
It is built for full-size 12 Inches x 20 Inches pans and accommodates inserts up to 6-1/4 Inches deep.
It includes a remote control panel with individual infinite controls and indicator lights.
Yes. The unit is hard wired in the field, and optional cords are available.
No. The unit is not designed to cook or heat frozen or refrigerated foods; it is intended to maintain hot foods.
