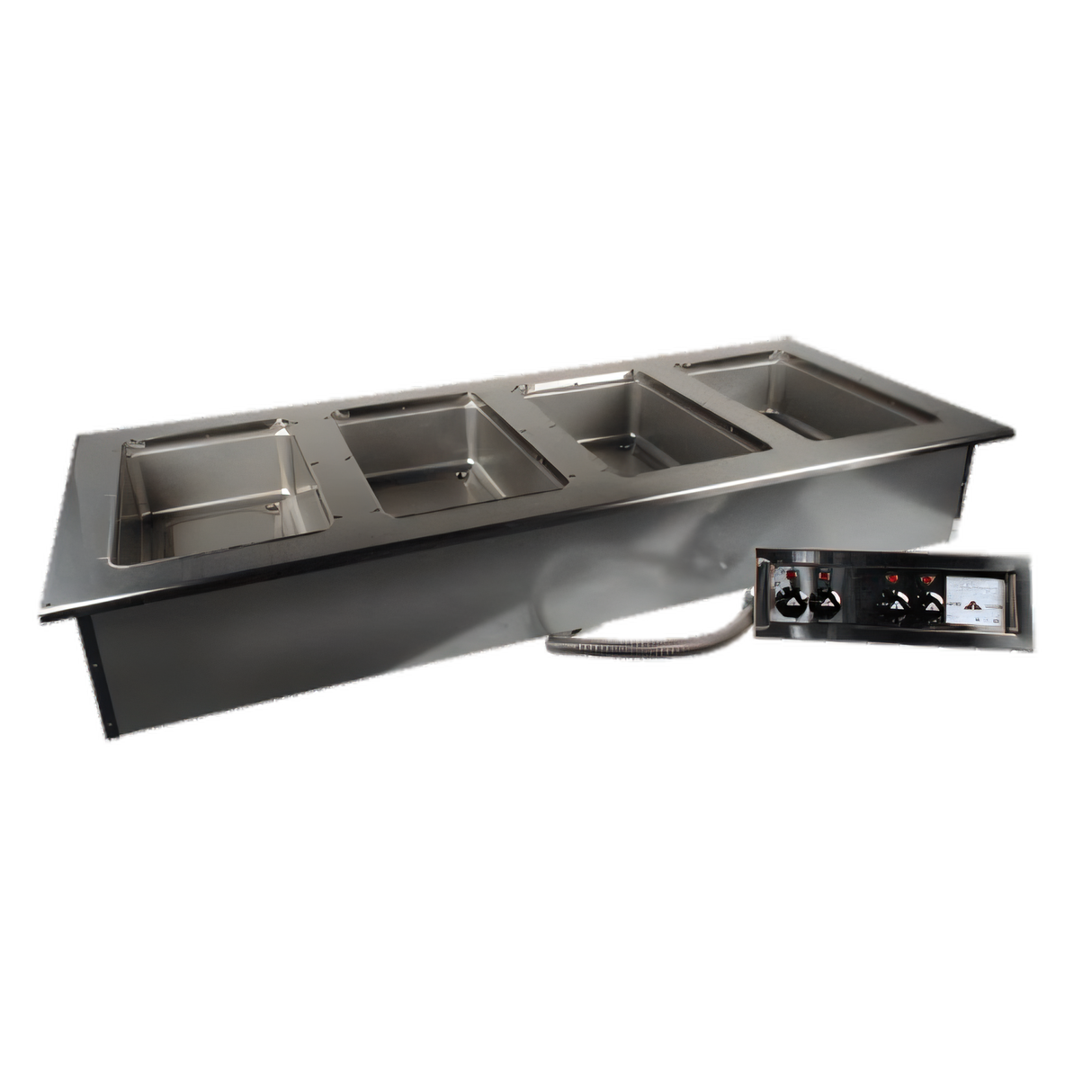

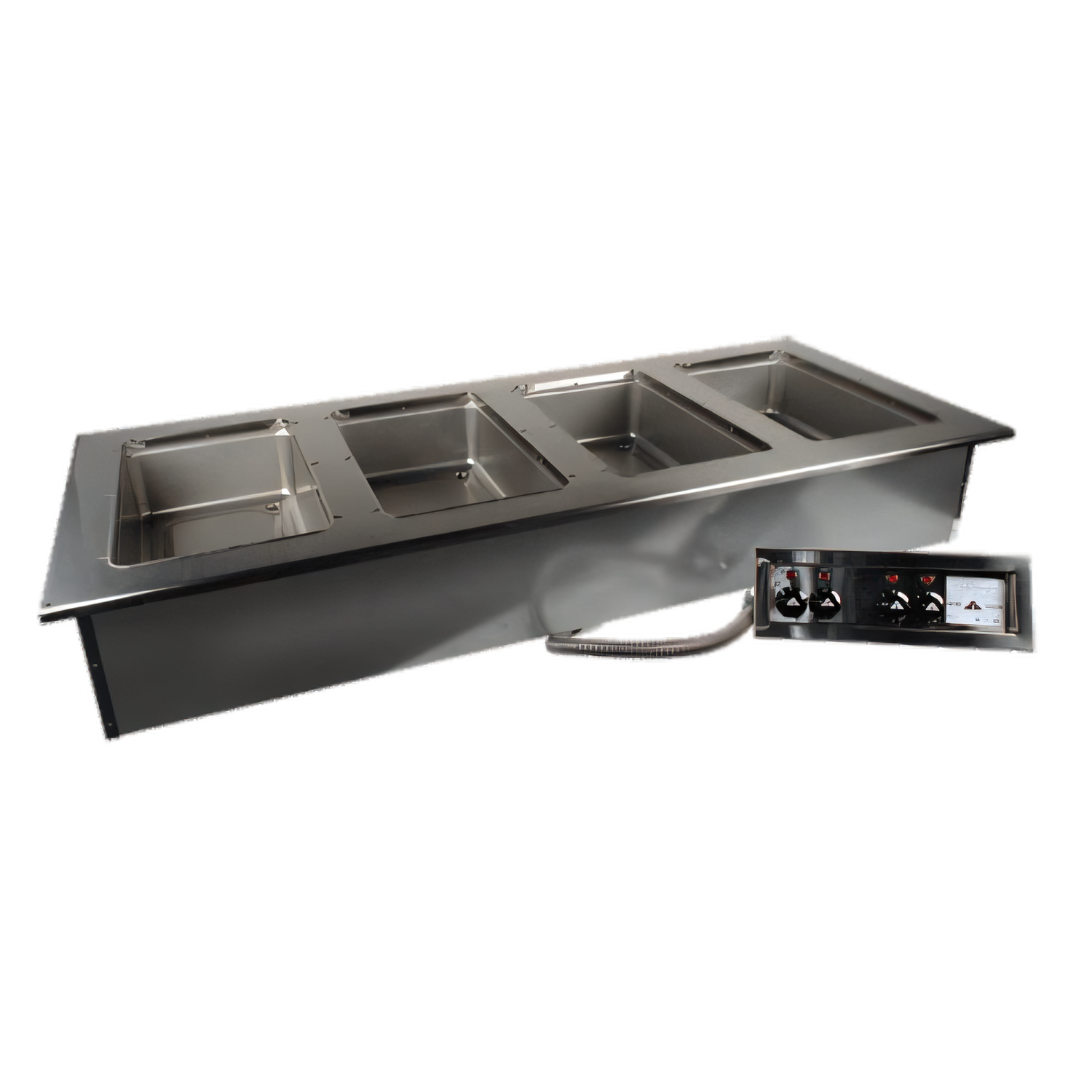

Advance Tabco Triumph (Supreme) 4-Pan Drop-In Electric Sealed Hot Food Well, 208/240V

SKU: DISW-4-240
GTIN: 747545182654
$3,188.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

Advance Tabco Triumph (Supreme) 4-Pan Drop-In Electric Sealed Hot Food Well, 208/240V

Wet or Dry Application, Remote Infinite Controls, Insulated

Keep four full-size pans hot and ready at the buffet with an insulated drop-in electric well, dual-voltage power, and precise remote infinite controls.

  • Four sealed wells accommodate standard 12" x 20" pans up to 6-1/4" deep.
  • Dual 208/240V operation supports flexible electrical installation.
  • Remote control panel with individual infinite controls and indicator lights for easy temperature adjustment.
  • Fiberglass insulation between compartments helps retain serving temperatures.
  • Supplied with drains for wet or dry application and 1/2" I.P.S. drain(s) with gate valve.
  • 18-gauge #304 stainless steel self-rimmed top and 20-gauge galvanized body for durability.

Overall Dimensions:

58.5"W x 24.5"D x 15.44"H

Product Weight:

180.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

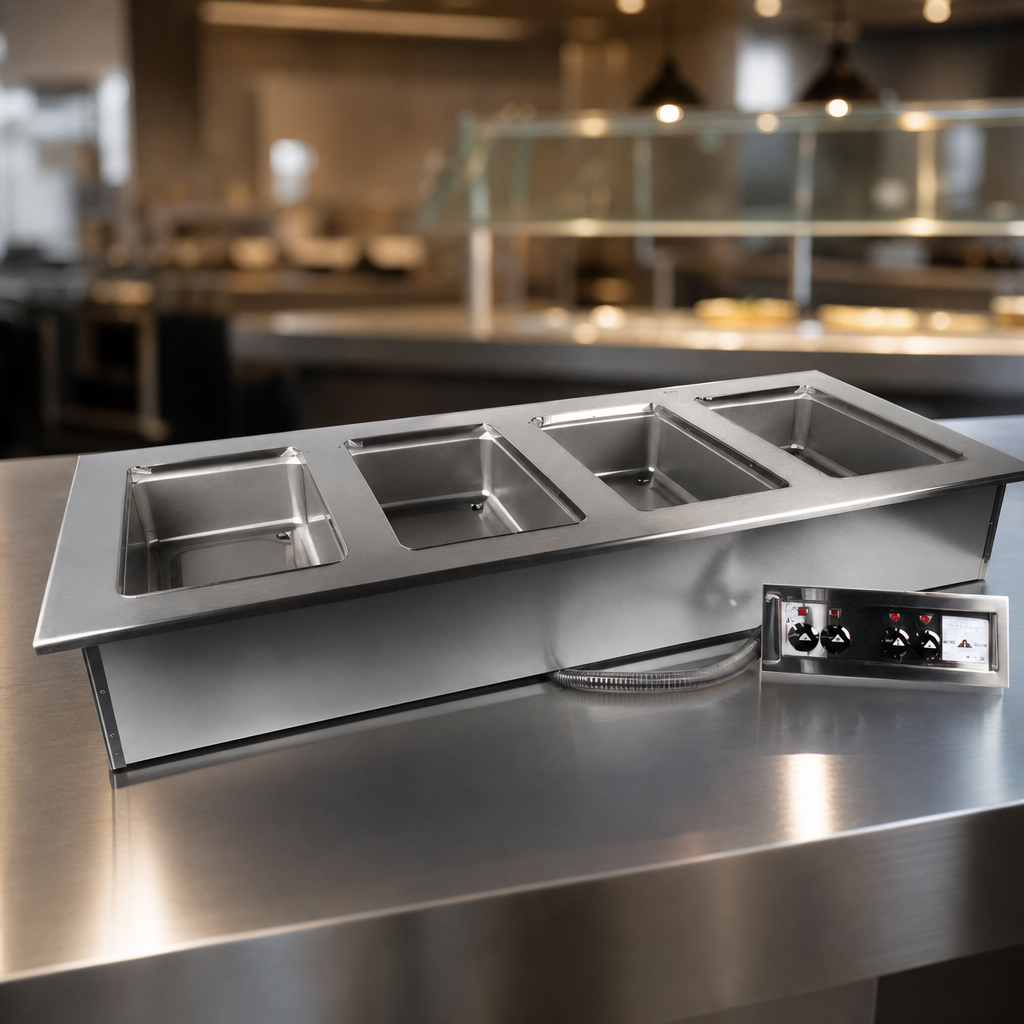

Four Sealed Wells

Holds (4) 12" x 20" pan inserts for buffet and serving-line applications.

Remote Control Panel

Individual infinite control knobs and indicator lights provide straightforward heat control.

Wet Or Dry Application

Supplied with drains and 1/2" I.P.S. drain(s) with gate valve for wet or dry use.

Fiberglass Insulation

Insulation between each compartment helps maintain hot-holding temperatures.

Stainless Steel Top

18-gauge #304 stainless steel self-rimmed top with die-stamped openings.

Galvanized Body

20-gauge galvanized body provides structural support.

Field Hard-Wired Connection

Unit is hard wired in the field; optional cord kits are available.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite Controls
Pan Capacity 4 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208/240 Volts
Amps 15.88/18.32 Amps
Watts 3.3/4.4 kW
Selling Unit Each
Units Per Case 1
Shipping Width 59 Inches
Shipping Depth 25 Inches
Shipping Height 16 Inches
Shipping Weight 180 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Diagram PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It accommodates (4) 12" x 20" pan inserts, up to 6-1/4" deep.
Yes. The unit is supplied with drains for wet or dry application, and the description identifies it as a wet-operation model.
This model is a 208/240V dual-voltage unit rated at 15.88/18.32 amps and 3.3/4.4 kW; it is hard wired in the field.
It uses a remote control panel with individual infinite control knobs and indicator lights.
The unit has an 18-gauge #304 stainless steel self-rimmed top, a 20-gauge galvanized body, and fiberglass insulation between compartments.
Yes. Optional cord kits are listed for different voltage and well-count configurations.
