Description

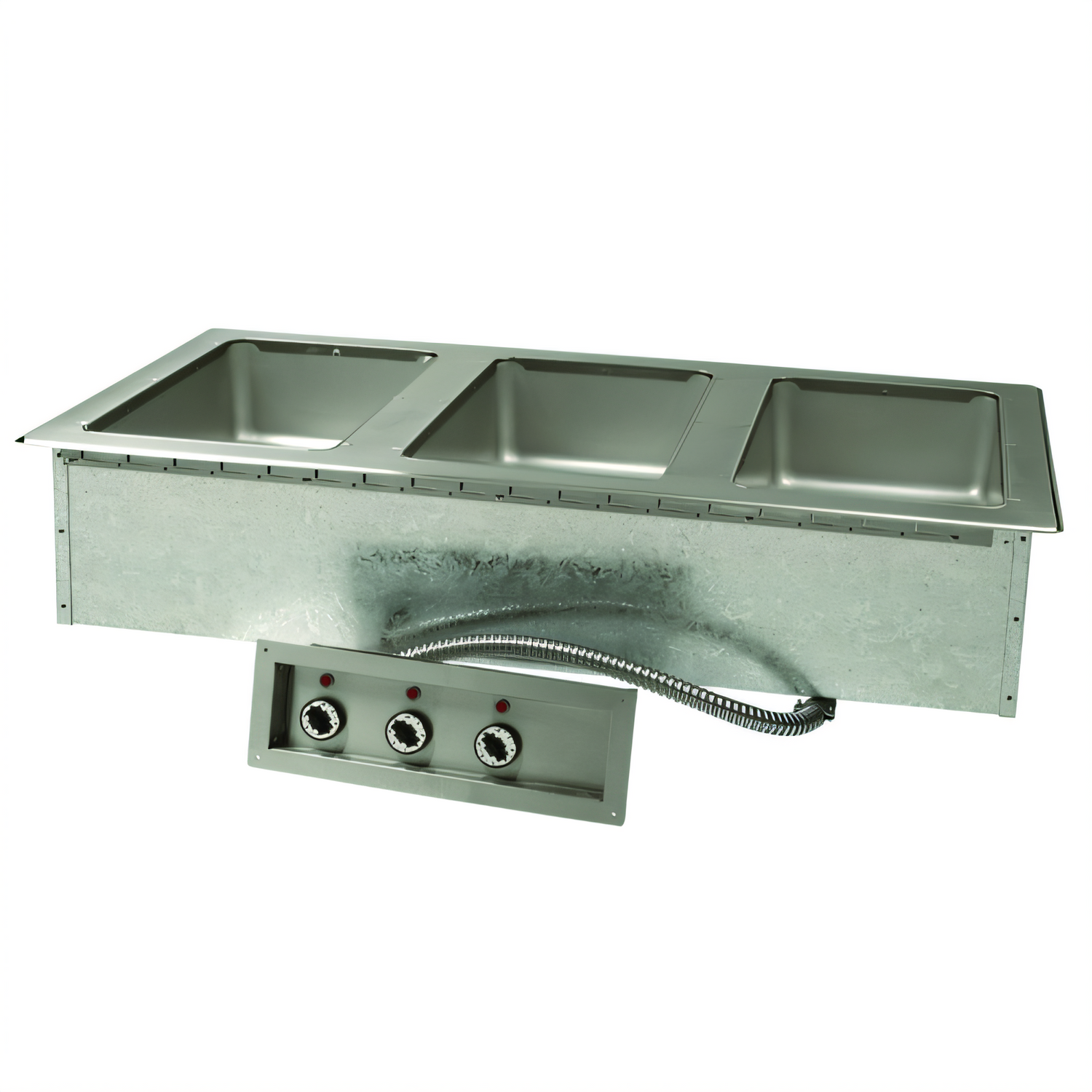

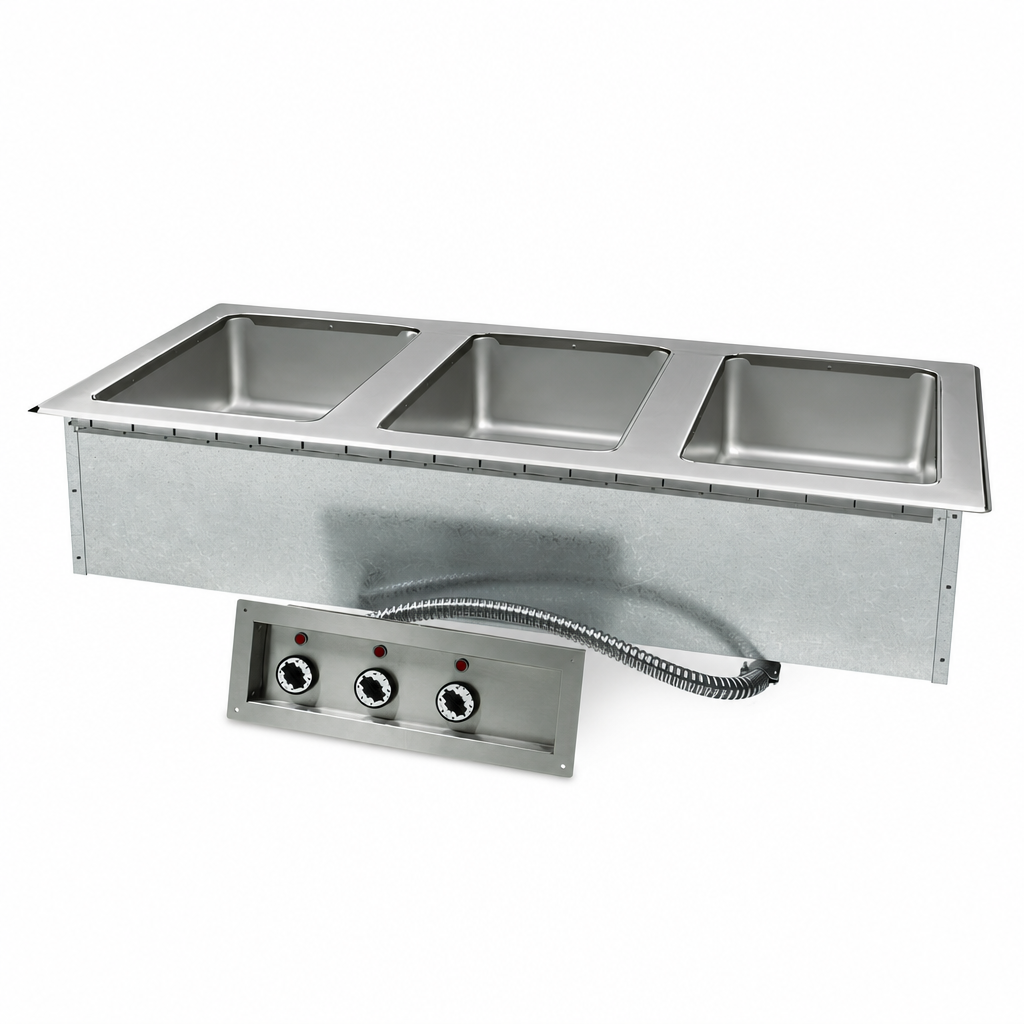

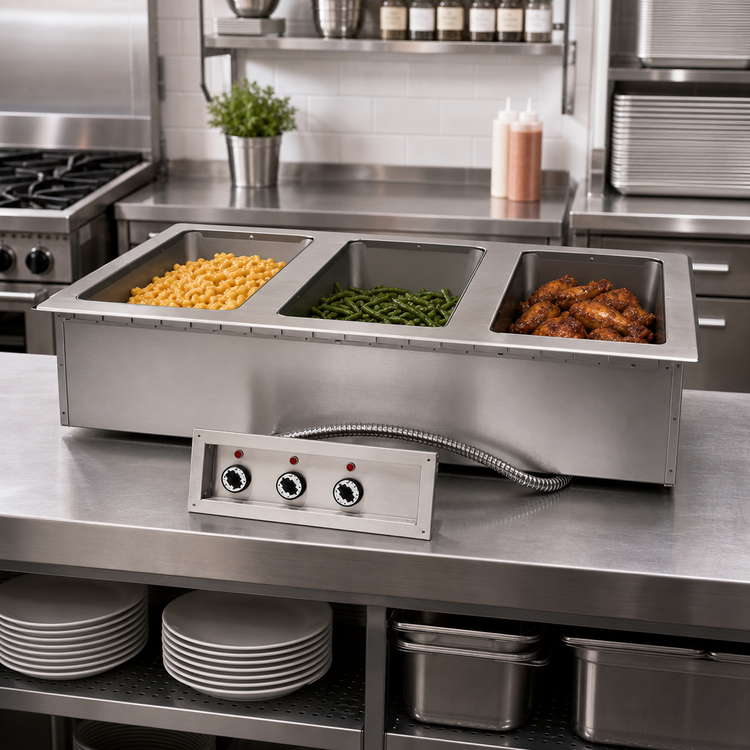

Triumph (Supreme) Drop-In Sealed Hot Food Well – 3 Wells

Advance Tabco Model DISW-3 • NSF & UL Listed

Keep entrées, sides, and sauces at safe serving temperatures without sacrificing counter space. The Triumph (Supreme) sealed hot food well drops neatly into a 44 ½ in. counter cut-out and uses wet heat to surround pans in gentle, uniform warmth—ideal for buffets, cafeterias, and cook-lines that run all day.

Why You’ll Love It

  • Three 12 in. × 20 in. sealed wells (accepts pans up to 6 ¼ in. deep).
  • Remote control panel with individual infinite switches & indicator lights—adjust each well on the fly without reaching over hot food.
  • Factory-installed ½ in. IPS drains & gate valve for quick wet-well clean-up.
  • 18 ga 304 stainless steel self-rimmed top resists corrosion and wipes clean in seconds.
  • 20 ga galvanized body with fiberglass insulation between wells prevents heat loss and keeps counters cool.
  • Shipped completely assembled; simply drop in and hard-wire on site.

Technical Specifications

Overall size (W × D × H) 44 ½ in. × 24 ½ in. × 15 7⁄16 in.
Counter cut-out 43 5⁄8 in. × 23 ½ in.
Well capacity (3) Full-size steam-table pans or fractional equivalents
Operation Wet (water bath)
Controls Remote panel, infinite switches & pilot lights (panel cut-out 12 3⁄8 in. L × 4 ½ in. H)
Electrical (single-phase) • 120 V, 27.5 A, 3 300 W
• 208 V, 11.9 A, 2 475 W
• 240 V, 13.7 A, 3 300 W
Drain connection (3) ½ in. IPS with gate valve
Shipping weight Approx. 135 lb
Certifications NSF, UL Listed

Popular Accessories (sold separately)

  • 8 ft cord sets with NEMA 5-15P, L5-30P, 6-20P or L6-30P plugs.
  • Manifold drain kit for single point drainage.
  • 12 × 1 in. adapter bars for fractional pans.
  • Thermostatic control upgrade (factory-installed option).
  • 3-phase wiring upgrade for 240 V units.
Important: This unit is designed to hold hot, cooked food at safe serving temperatures. Always pre-heat wells and place food in the wells already heated to the proper temperature.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Triumph (Supreme)

Certifications

NSF, UL

Height

15.44in

Width

44.5in

Depth

24.5in

Shipping Weight

135.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, drop-in, electric, 44-1/2”W x 24-1/2"D x 15-7/16"H (overall), 43-5/8”W x 23-1/2”D (cut out size), (3) 12" x 20" sealed hot food wells with drains (accommodates pan inserts up to 6-1/4" deep), wet operation, remote control panel with individual infinite controls, indicator lights, 18 gauge 304 stainless steel self rimmed top, 20 gauge galvanized body, NSF, UL
