Description

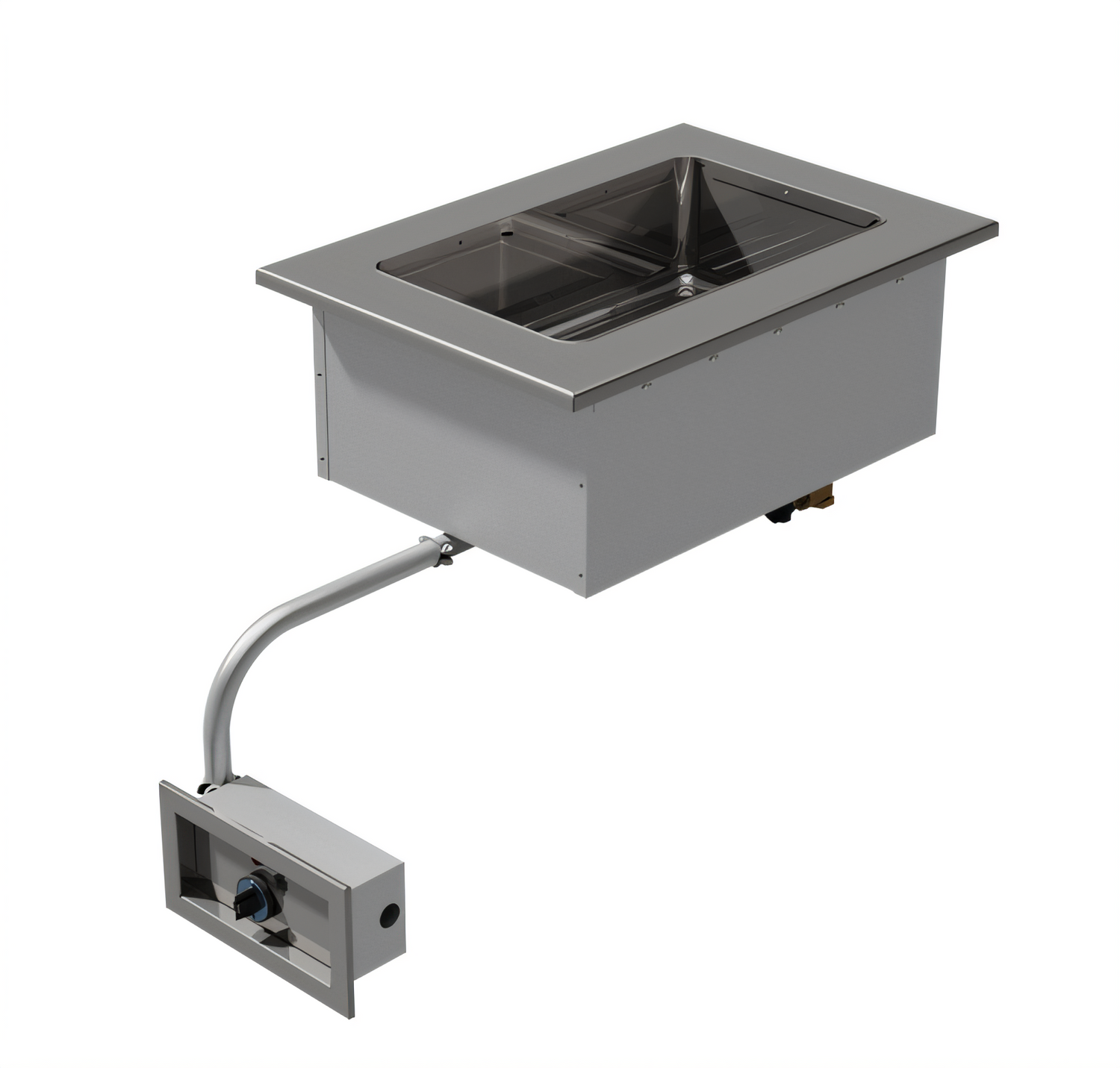

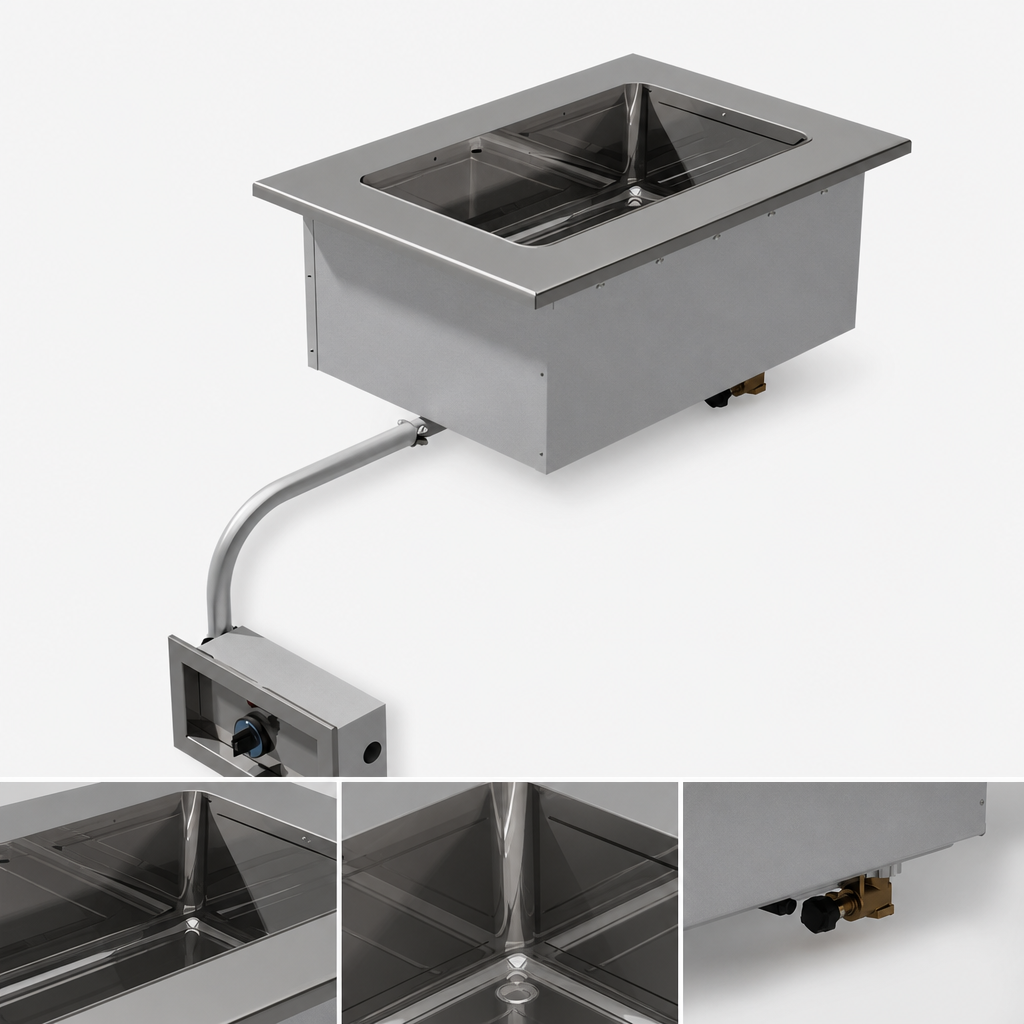

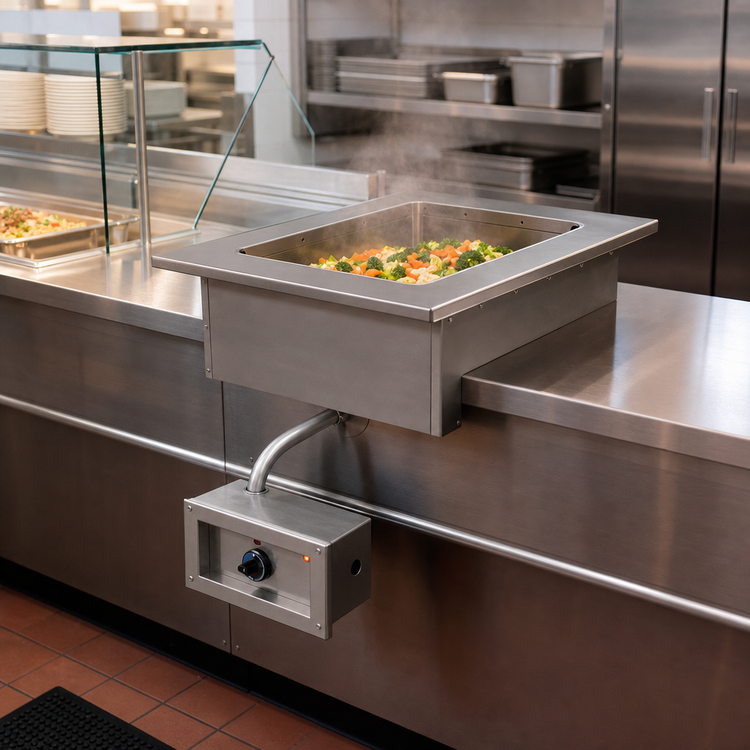

Advance Tabco Triumph (Supreme) Drop-In Hot Food Well
Model DISW-1 – Single 12" × 20" Sealed Well, ElectricKeep entrées piping-hot, fresh and ready for service with this NSF & UL-listed sealed well from Advance Tabco. Engineered for easy drop-in installation, the Triumph (Supreme) delivers reliable wet-bath heating for a full-size 12" × 20" pan while its remote panel puts precise infinite controls right at your fingertips.
Why You’ll Love It
- Fits a single full-size 12" × 20" pan (up to 6-1/4" deep) – perfect for à-la-carte lines, buffets & catering stations.
- Sealed 18 ga 304 stainless steel well with ½" I.P.S. drain & gate valve for quick, mess-free water changes.
- Remote control panel with infinite heat dial & indicator light for accurate holding temperatures.
- Fully insulated fiberglass blanket between well & body reduces heat loss and saves energy.
- Self-rimmed 18 ga 304 stainless top drops flush into your counter for a clean, professional finish.
- Rugged 20 ga galvanized outer body built to withstand busy commercial kitchens.
- NSF compliant & UL listed for electrical safety.
At-a-Glance Specs
| Overall Dimensions | 16 1⁄2" W × 24 1⁄2" D × 15 7⁄16" H |
|---|---|
| Counter Cut-Out | 15 5⁄8" W × 23 1⁄2" D |
| Pan Capacity | (1) Full-size 12" × 20" GN pan, up to 6-1⁄4" deep |
| Operation | Wet-bath (water required) |
| Heating Output |
1100 W @ 120 V (9.2 A) 825 W @ 208 V / 1100 W @ 240 V (4.0 A / 4.6 A) |
| Control Type | Remote infinite switch with pilot light |
| Drain Connection | ½" I.P.S. with gate valve (standard left) |
| Construction | 18 ga 304 SS top & well, 20 ga galvanized body, fiberglass insulated |
| Certifications | NSF, UL |
| Electrical | Hard-wired; optional cord sets sold separately |
Popular Add-Ons (Sold Separately)
- SU-P-234 – 8' cord with NEMA 5-15P plug (120 V).
- SU-P-232 – 8' cord with NEMA 6-20P plug (208/240 V).
- SU-45A – 12" × 1" adapter bar for fractional pans.
- Manifold drain kit for multi-well lineups.
Need a matching multi-well configuration? Explore Advance Tabco’s full DISW series or chat with our team for a custom Smart Fabrication™ solution.
