Advance Tabco DISLSW-2-240 Steam Tables & Food Wells
Description

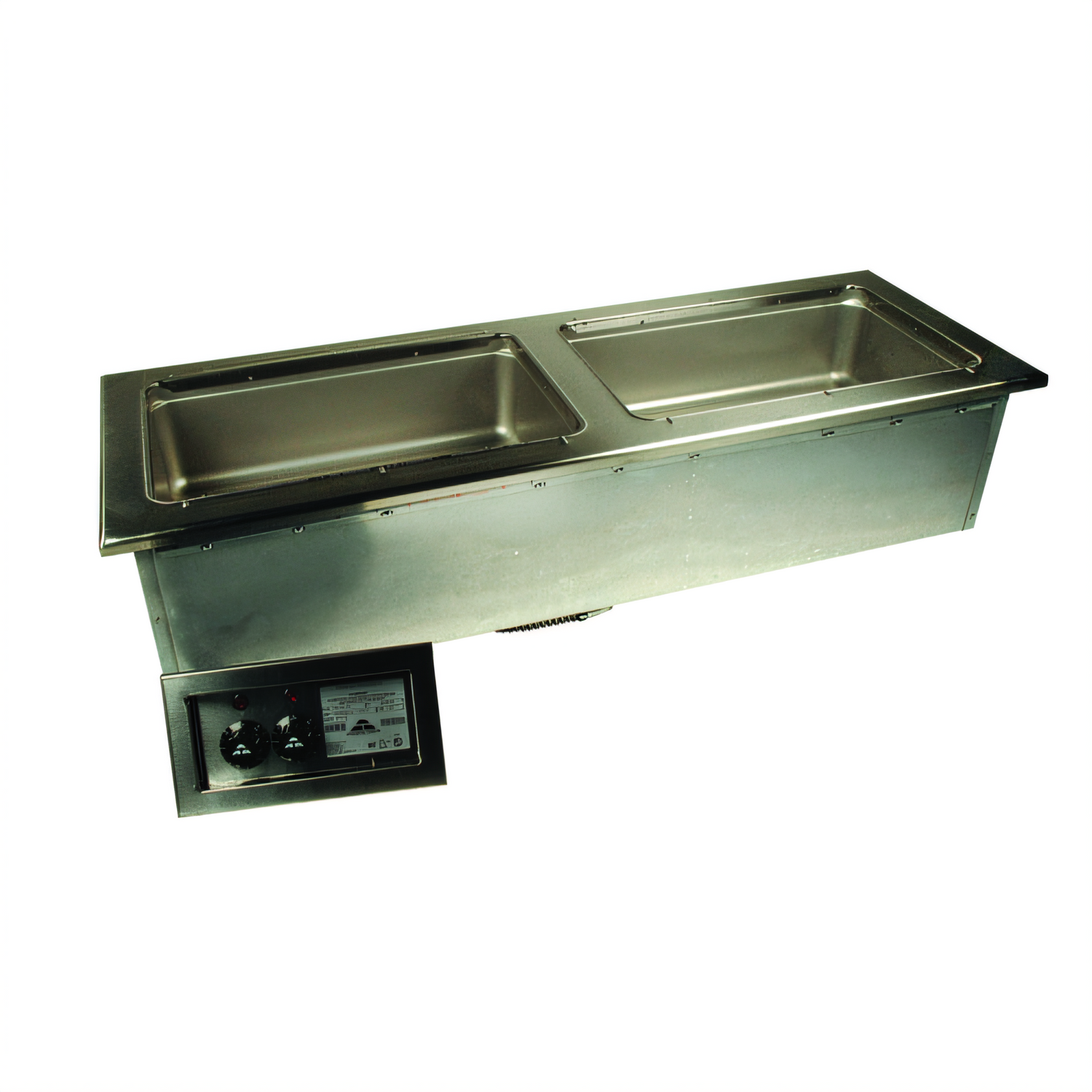

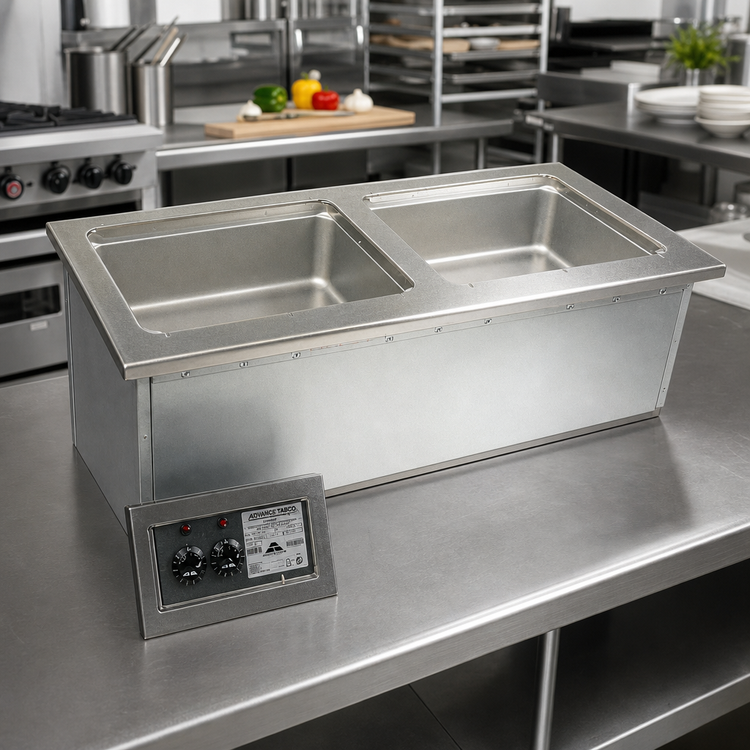

Advance Tabco Slimline Drop-In Sealed Hot Food Well – 2 Wells, 120 V
Model DISLSW-2-120 • 46 ½" W x 16 ½" D overallKeep entrées and sides at safe, appetizing serving temperatures in tight counter spaces. The Slimline DISLSW-2-120 packs two individually-controlled 12" x 20" hot food wells into a narrow 16 ½" footprint, perfect for buffet lines, cafeterias, coffee shops, and grab-and-go stations.
Key features
- Two sealed 12" x 20" wells – accept pans up to 6 ¼" deep
- Wet operation with 1" I.P.S. drains & gate valves on each well for fast clean-up
- Remote control panel with individual infinite controls & indicator lights
- 18 ga 304 stainless steel self-rimmed top drops in flush for a sanitary, finished look
- 20 ga galvanized body with full fiberglass insulation between compartments
- 120 V hard-wired – 2,200 W / 18.3 A total load
- NSF & UL listed for foodservice safety and compliance
Built for performance
- High-limit protection set at 266 °F guards elements against dry-well operation
- Self-rimmed design eliminates the need for unsightly trim rings
- Separate circuit for each well lets you shut down one side during slow periods to save energy
- Slim 10 3⁄16" depth under counter preserves valuable cabinet space
Technical specifications
| Model | DISLSW-2-120 |
|---|---|
| Number of wells | 2 sealed – wet |
| Overall dimensions | 46 ½" W x 16 ½" D x 10 3⁄16" H |
| Cut-out required | 45 ¼" W x 15 ¼" D |
| Well opening | Die-stamped 12" x 20" (per well) |
| Pan depth capacity | Up to 6 ¼" |
| Drain size | 1" I.P.S. with gate valve (per well) |
| Top material | 18 ga 304 stainless steel, self-rimmed |
| Body material | 20 ga galvanized steel |
| Controls | Remote panel, infinite (low-high) with pilot lights |
| Electrical | 120 V, 1 ph, hard-wire |
| Total wattage / amps | 2,200 W / 18.33 A |
| Certifications | NSF, UL |
| Shipping weight | 125 lb (approx.) |
Optional accessories (sold separately)
- SU-P-231 – 8 ft cord set with NEMA L5-30P plug (2- or 3-well, 120 V units)
- SU-90 – Auto-fill kit to maintain water level (requires manifold drain)
- SU-45A – 12" x 1" adapter bars for fractional pans
- Factory suffix -M – manifold drain connection
Unit must be hard-wired by a qualified electrician. Consult the installation manual for cut-out placement, ventilation, and local code compliance.
