Advance Tabco  |  SKU: DISLSW-2-120  |  UPC: 747545182432

Advance Tabco DISLSW-2-120 Steam Tables & Food Wells

$2,328.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Parts list Owner's manual Diagram
Related Searches
Advance Tabco Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

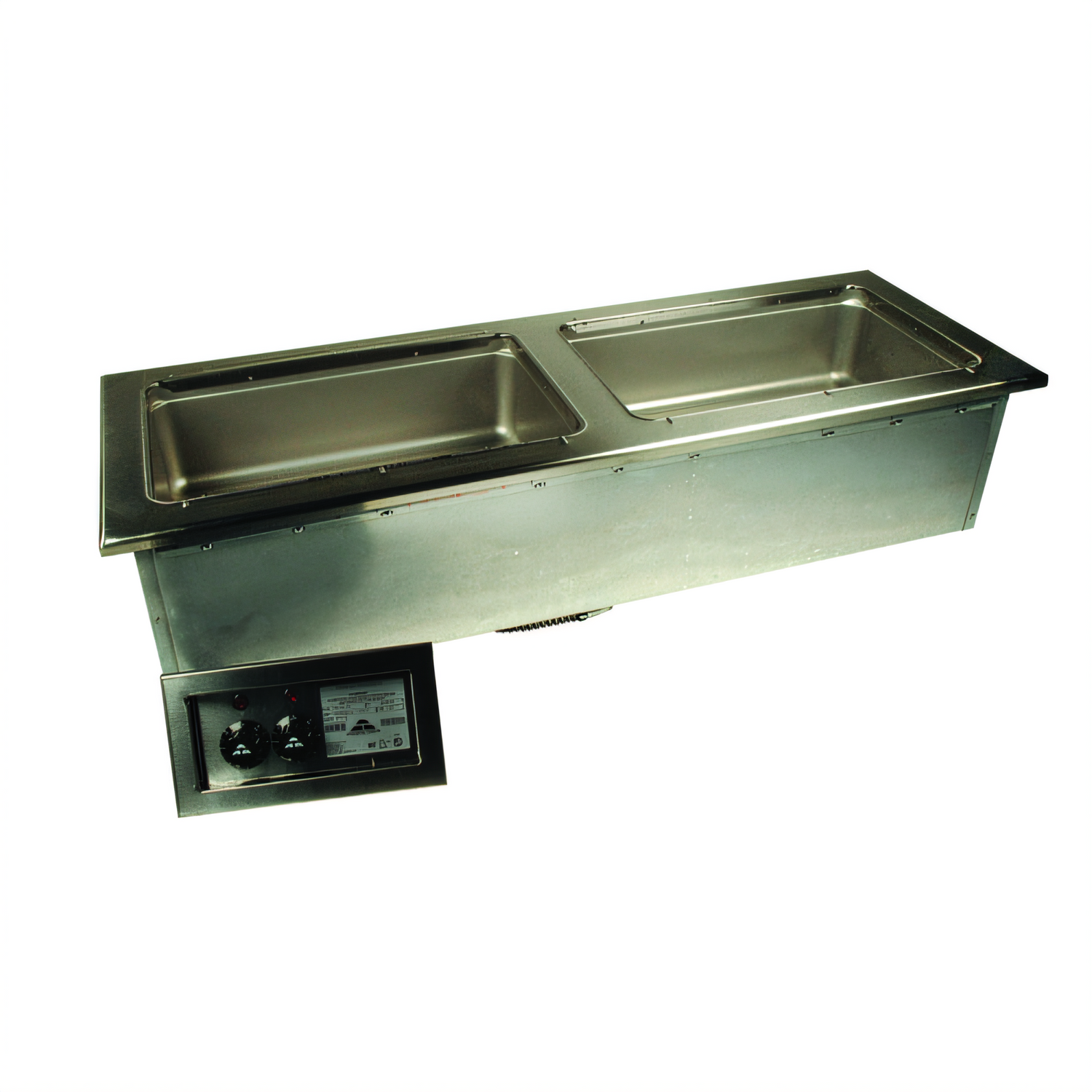

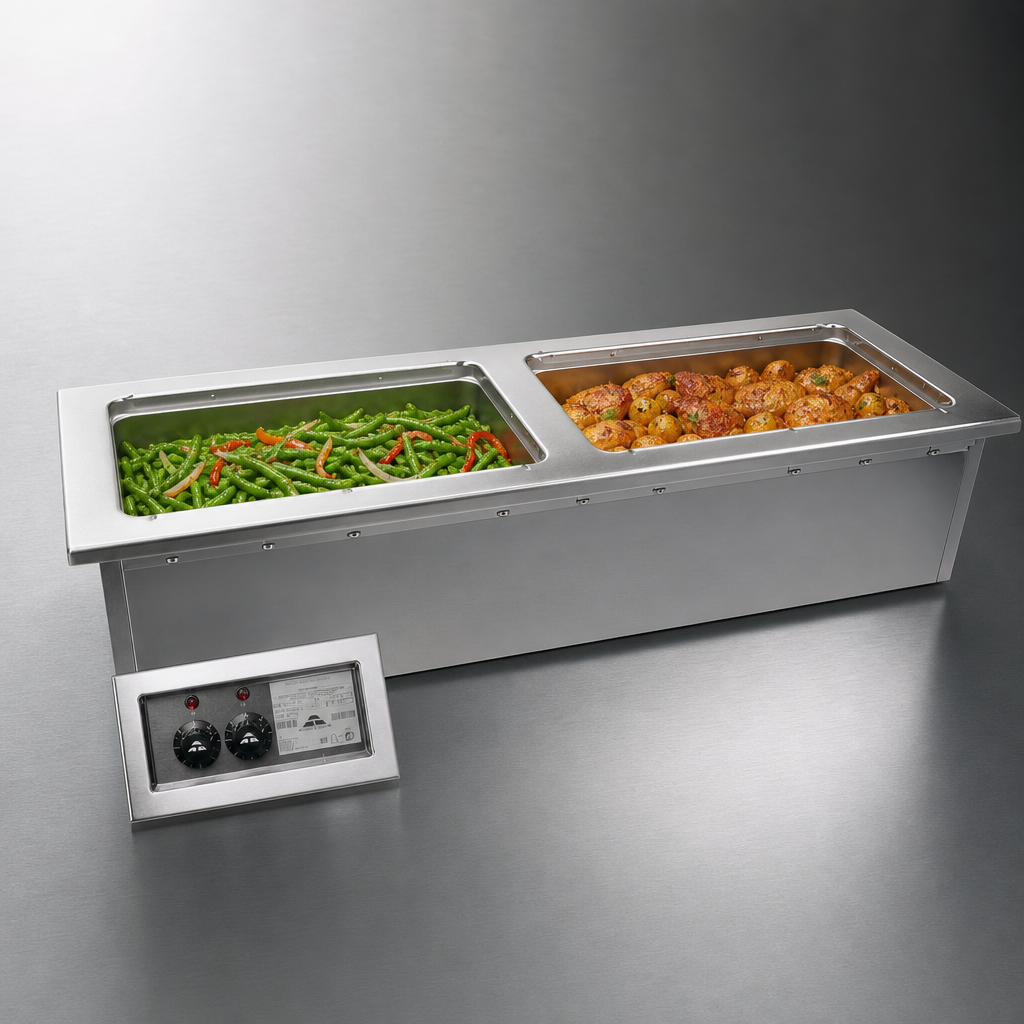

Advance Tabco DISLSW-2 Slim Series Drop-In Hot Food Well – 2 Wells, 120 V

Sealed wet wells with remote infinite controls  |  NSF & UL Listed

Keep entrées, sides and sauces at serving-ready temperatures without sacrificing counter space. The Advance Tabco DISLSW-2 combines a slim 16-1/2" footprint with the durability of 18 ga 304 stainless steel, giving you a dependable, easy-to-install solution for buffets, cafeterias and catering lines.

Why You’ll Love It

  • Space-saving 16-1/2" Slimline profile fits narrow counters and serving lines.
  • (2) 12" × 20" sealed wet wells accept pans up to 6-1/4" deep.
  • Remote control panel with individual infinite switches & indicator lights for precise holding.
  • 1" I.P.S. drains with gate valves on each well for fast, mess-free water removal.
  • 18 ga 304 SS self-rimmed top resists corrosion; 20 ga galvanized body adds strength without extra weight.
  • Fiberglass insulation between wells reduces energy use and keeps exterior surfaces cooler.
  • NSF & UL listed for sanitation and electrical safety compliance.

Specifications

Model DISLSW-2-120
Overall Dimensions 46-1/2" W × 16-1/2" D × 10-3/16" H
Cut-Out Size 45-1/4" W × 15-1/4" D
Number of Wells 2 Sealed (wet operation only)
Pan Capacity Holds standard 12" × 20" pans up to 6-1/4" deep
Controls Remote panel, individual infinite switches, indicator lights
Drain 1" I.P.S. drain with gate valve (each well)
Construction Top: 18 ga 304 stainless steel  |  Body: 20 ga galvanized steel
Electrical 120 V, 18.3 A, 2,200 W  |  Hard-wired connection
Certifications NSF, UL
Approx. Shipping Weight 125 lb / 12.8 cu ft

Popular Accessories (Sold Separately)

  • SU-P-231 8' cord set with NEMA L5-30P plug – simplifies installation on 120 V, 2-well units.
  • SU-90 Auto-Fill System – automatically maintains water level (requires manifold drain).
  • Manifold drain option (add suffix “-M”) – single connection for multiple well drains.
  • SU-45A 12" × 1" adapter bars – create custom pan configurations.

Need something you don’t see? Ask our team about additional cord sets, thermostat upgrades, and replacement parts.

Important: This equipment is designed to maintain pre-heated food at safe serving temperatures. Do not use it to cook or to heat refrigerated or frozen foods from a cold state.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, UL

Height

10.19in

Width

46.5in

Depth

16.5in

Shipping Weight

125.0lbs

Controls

infinite controls

Pan Capacity

(2) full size (12" x 20")

Style

individual pans

Wet or Dry operation

wet

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Specifications

Slim Series Hot Food Well Unit, drop-in, electric, 46-1/2”W x 16-1/2"D x 10-3/16"H (overall), 45-1/4”W x 15-1/4”D (cut out size), (2) 12" x 20" sealed hot food wells with drains (accommodates pan inserts up to 6-1/4" deep), wet operation, remote control panel with individual infinite controls, indicator lights, 18 gauge 304 stainless steel self rimmed top, 20 gauge galvanized body, NSF, UL
