Advance Tabco DISLRCP-4 Steam Tables & Food Wells
Description

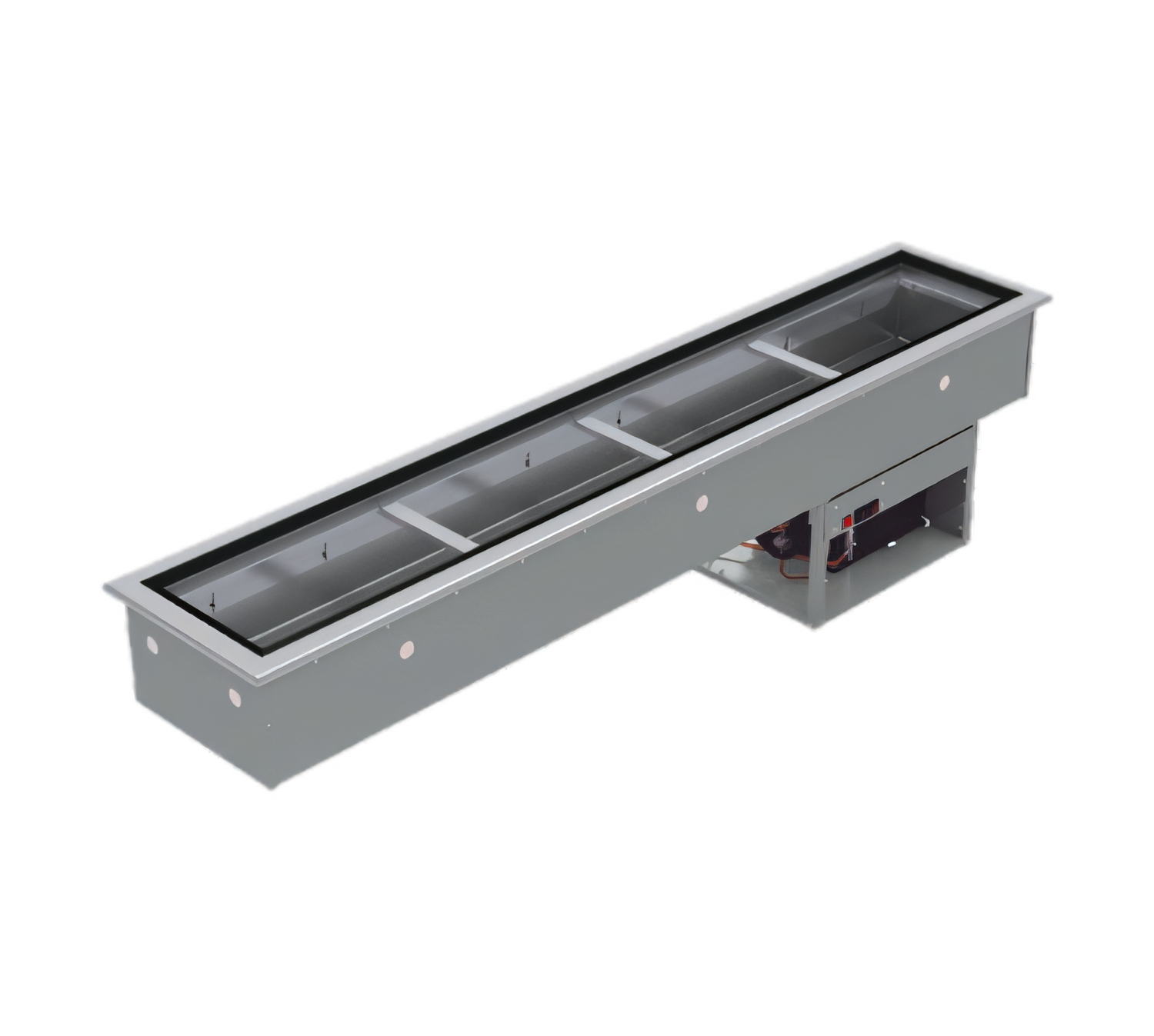

Advance Tabco DISLRCP-4 Slimline 4-Well Refrigerated Drop-In Cold Pan
Self-Contained • 92-7/8″ Wide • Digital Temperature ControlKeep salads, bottled beverages, and grab-and-go items perfectly chilled without sacrificing valuable counter depth. The DISLRCP-4 Slimline Cold Pan drops neatly into a 17-3/8″ counter cut-out while delivering high-capacity, energy-efficient refrigeration to four full-size wells.
Key Features
- Four fully-refrigerated wells accept 12″ × 20″ pans up to 6-1/4″ deep
- 18 ga 304 stainless steel top with black polyethylene marine edge contains spills & condensation
- 3″ recessed, one-piece 304 stainless liner for an even “cold blanket” over product
- Foamed-in-place insulation: 1-1/4″ sides, 2″ bottom for maximum cold retention
- Self-contained R404A refrigeration with 1/3 HP hermetic compressor
- Aluminum-encased copper tube evaporator panels boost heat transfer and cut energy use
- Digital, programmable thermostat for pinpoint temperature holding
- Expansion valve, filter-drier & sight glass protect and optimize the sealed system
- Includes two left-to-right rails & five front-to-back supports for flexible pan layouts
- Pre-wired with 8 ft cord & NEMA 5-15P plug—just drop in, plug in, and start chilling
- ETLus & ETL-Sanitation listed
Technical Specifications
| Model | DISLRCP-4 |
|---|---|
| Overall Dimensions (W × D × H) | 92-7/8″ × 18-5/8″ × 24-1/8″ |
| Required Counter Cut-Out | 91-5/8″ × 17-3/8″ |
| Number of Wells | 4 refrigerated wells |
| Pan Capacity | Up to (4) 12″ × 20″ pans, 6-1/4″ max depth |
| Refrigerant | R404A |
| Compressor | 1/3 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1 Ph • 8 A • NEMA 5-15P |
| Drain | 1″ I.P.S. threaded |
| Construction | 304 SS top & liner • Galvanized steel outer jacket |
| Shipping Weight | Approx. 325 lb |
Optional accessories: SU-P-514 replacement rail kit & SU-45A adapter bars for smaller pans.
Ideal For
- Salad & sandwich prep lines
- Self-service buffets and cafeterias
- Grab-and-go convenience counters
- Beverage or dessert merchandising
This unit is intended to hold pre-chilled product. Always chill food to 41 °F / 5 °C or below before placing in the wells.
⚠️ California Proposition 65: This product can expose you to chemicals, including ethane, known to the State of California to cause cancer or birth defects. For more information visit www.p65warnings.ca.gov.
