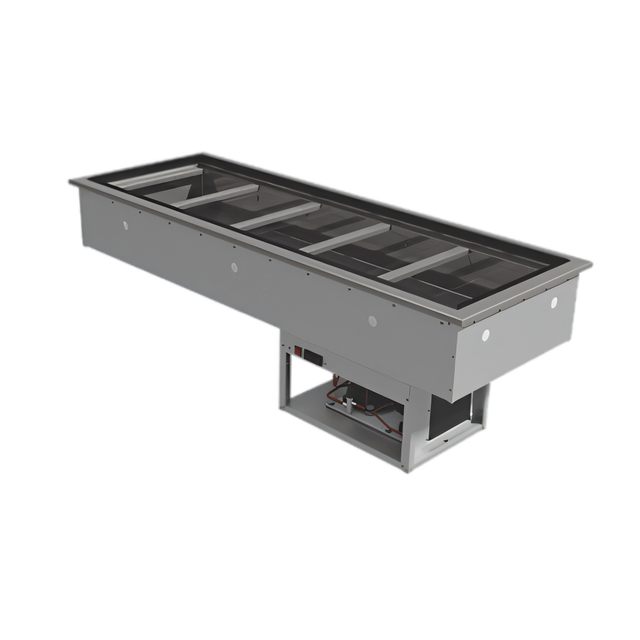

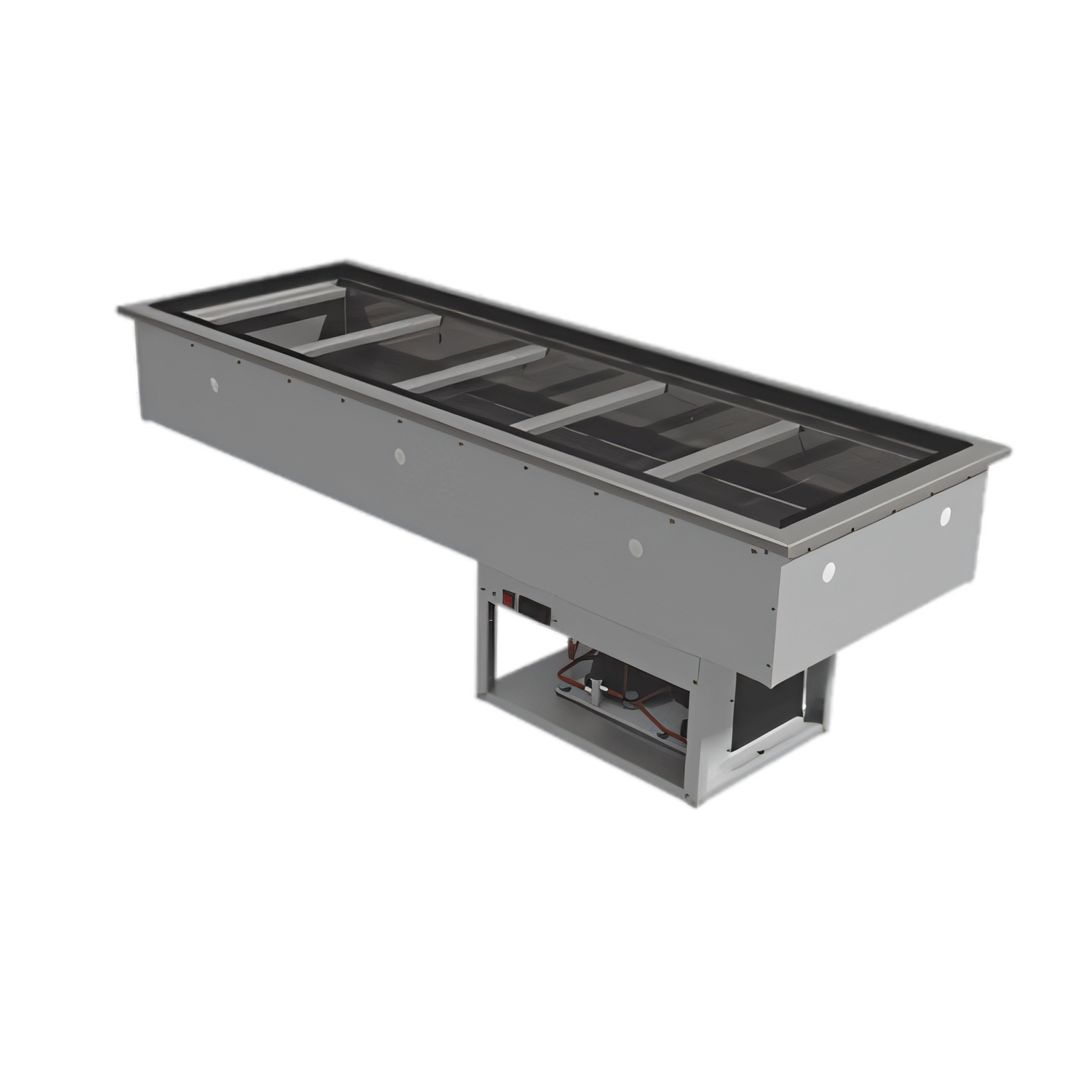

Advance Tabco DIRCP-5 Drop-In Refrigerated Cold Pan
5-Well | Self-Contained | 25-1/2" × 72-5/8" Cut-OutTransform any counter into a high-volume salad bar, toppings station or beverage cold well. The DIRCP-5 holds five full-size 12" × 20" pans (up to 6-1/4" deep) and keeps them at NSF-safe temperatures with a digitally controlled, self-contained refrigeration system.
Why Choose the DIRCP-5
- Ready-to-install drop-in design fits a 25-1/2" × 72-5/8" counter cut-out.
- High nominal cooling capacity for stable product temperatures—even during rush periods.
- Fully self-contained 1/3 HP condensing unit with environmentally friendly R-404A charge.
- Aluminum-encased copper tube evaporator panels maximize cold surface contact for faster pull-down and lower energy use.
- Digital, programmable thermostat with easy-read LED display for precise temperature control.
- 18-gauge #304 stainless steel top and liner with 3" recessed pan area and coved 1/4" corners for effortless cleaning.
- Foamed-in-place polyurethane insulation—1-1/4" on sides, 2" on bottom—reduces heat gain and condensation.
- Includes adapter rails & supports for multiple pan configurations straight out of the box.
- ETLus & ETL-Sanitation listed for electrical and food-safety compliance.
At-a-Glance Specs
| Model | DIRCP-5 |
|---|---|
| Pan Capacity | (5) Full-size 12" × 20" pans, up to 6-1/4" deep |
| Counter Cut-Out | 25-1/2" W × 72-5/8" L |
| Overall Dimensions | 26-3/4" W × 74" L × 9" H (compressor extends 13-1/4" below counter) |
| Refrigerant / HP | R-404A / 1/3 HP |
| Electrical | 115 V, 8 A, 60 Hz, 1-Ph — 8' cord & NEMA 5-15P plug included |
| Drain | 1" I.P.S. with pitched liner for quick removal of melt water |
| Shipping Weight | 365 lb |
| Certifications | ETLus, ETL-Sanitation, Prop 65 |
Important Installation Requirement:
When the unit is mounted in an enclosed cabinet, you must provide a minimum of 200 in² free-air intake and 200 in² exhaust ventilation. Inadequate airflow will overheat the compressor and void warranty coverage.
When the unit is mounted in an enclosed cabinet, you must provide a minimum of 200 in² free-air intake and 200 in² exhaust ventilation. Inadequate airflow will overheat the compressor and void warranty coverage.
Best Practices
- Load only pre-chilled food products—unit is not designed to pull down warm food.
- Keep adapter rails in place to maintain even airflow around each pan.
- Periodically clean the condenser coil to sustain peak efficiency.
⚠️ This equipment can expose you to chemicals including ethane, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.
$5,005.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Advance Tabco DIRCP-5 refrigerated drop-in cold pan holds five 12x20 pans, stainless top, self-contained R290 cooling, digital thermostat, ETL-Sanitation.
Manufacturer
Advance Tabco
Certifications
ETLus, ETL-Sanitation
Height
24.13in
Width
74.0in
Depth
26.75in
Shipping Weight
365.0lbs
Insulation
insulated
Width (side - side)
73 - 78 inches
Style
self-contained refrigeration
Finish
stainless steel top & inner liner, galvanized outer liner
Pan Size
full-size (12" x 20")
Layout
straight
Pan Qty
5-pan
Specifications
Refrigerated Cold Pan, Drop-in, 25-1/2" x 72-5/8" cut out, holds (5) 12" x 20" pans (accommodates pan inserts up to 6-1/4" deep, with additional space below for cold air circulation), stainless steel top, fully self contained condensing unit, digital programmable thermostat, aluminum encased copper tube evaporator panels, expansion valve, R290 refrigerant, ETLus, ETL-Sanitation
