Advance Tabco DIRCP-4 Steam Tables & Food Wells

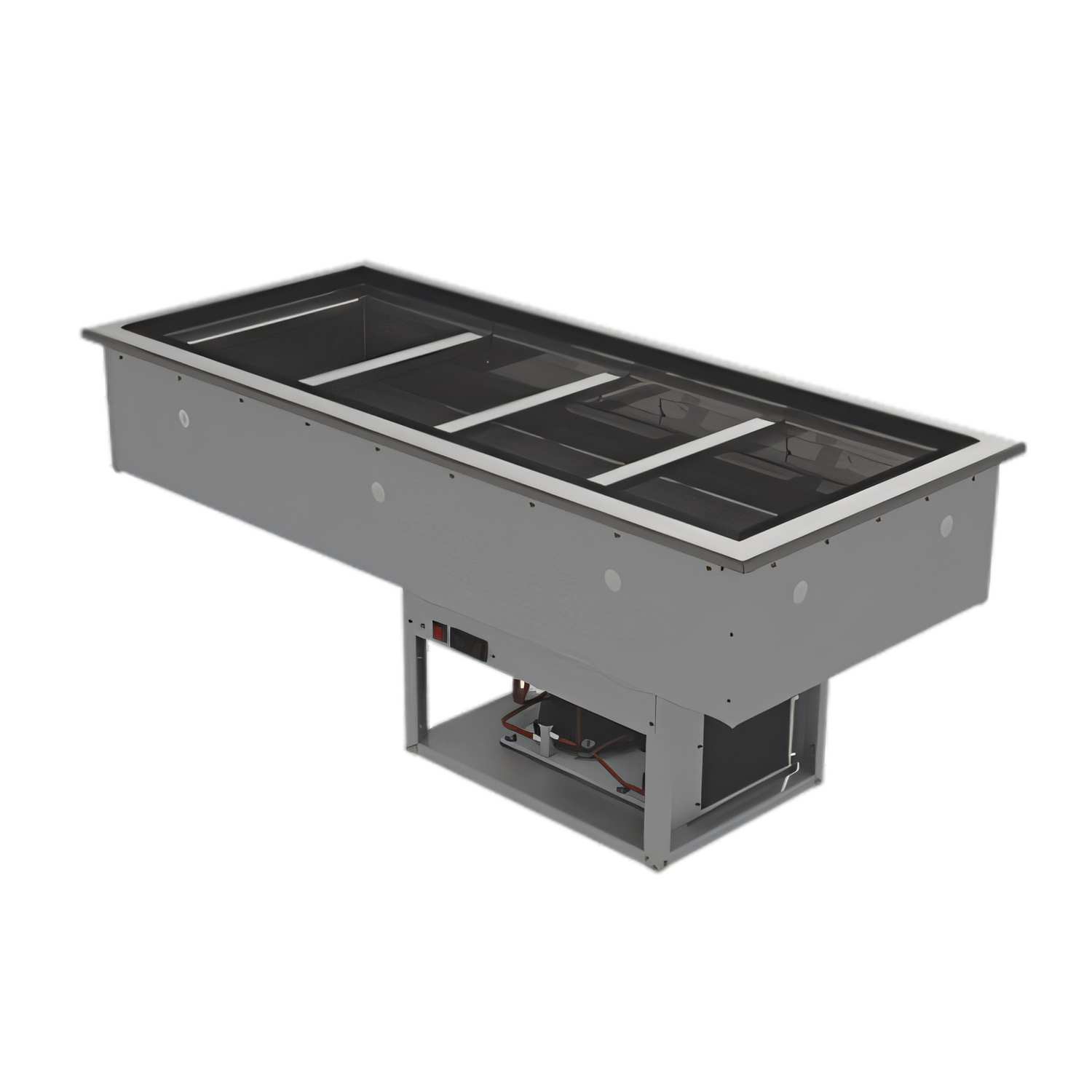

Advance Tabco DIRCP-4 Drop-In Refrigerated Cold Pan

Keep salads, bottled beverages, toppings and other perishables perfectly chilled while freeing up counter space. The DIRCP-4 installs flush in your countertop and delivers reliable, energy-efficient refrigeration in a sleek stainless-steel package.

Key Features

• Holds four full-size 12" × 20" pans (up to 6-1/4" deep) with extra space underneath for unrestricted cold-air flow.
• 18-ga 304 stainless-steel top with black polyethylene marine edge limits spill-over and protects surrounding surfaces.
• 3" recessed, one-piece liner—welded, polished and pitched to a 1" I.P.S. drain for fast clean-ups.
• Aluminum-encased copper tube evaporator panels maximize contact area for faster pull-down and lower energy use.
• Digital programmable thermostat and hermetically sealed compressor for precise, quiet operation.
• Factory-installed expansion valve, sight glass, liquid receiver & filter drier for long-term, trouble-free performance.
• Foamed-in-place insulation (1-1/4" sides, 2" bottom) wrapped in a rugged 22-ga galvanized jacket.
• Ships ready to plug in—8 ft cord with NEMA 5-15P; runs on just 8 A from any standard 115 V circuit.
• Adapter rails & supports included for immediate pan placement.
• ETLus & ETL Sanitation listed; charged with environmentally friendly R404A refrigerant.

Specifications

Installation Notes

• Provide at least 200 in² unobstructed air intake and 200 in² exhaust when mounting in an enclosed cabinet to maintain warranty.
• Unit is designed to hold pre-chilled food; it will not pull down product that is above safe temperatures.

Replacement adapter rail and bar kits are available to keep your DIRCP-4 in peak serving condition.
