Description

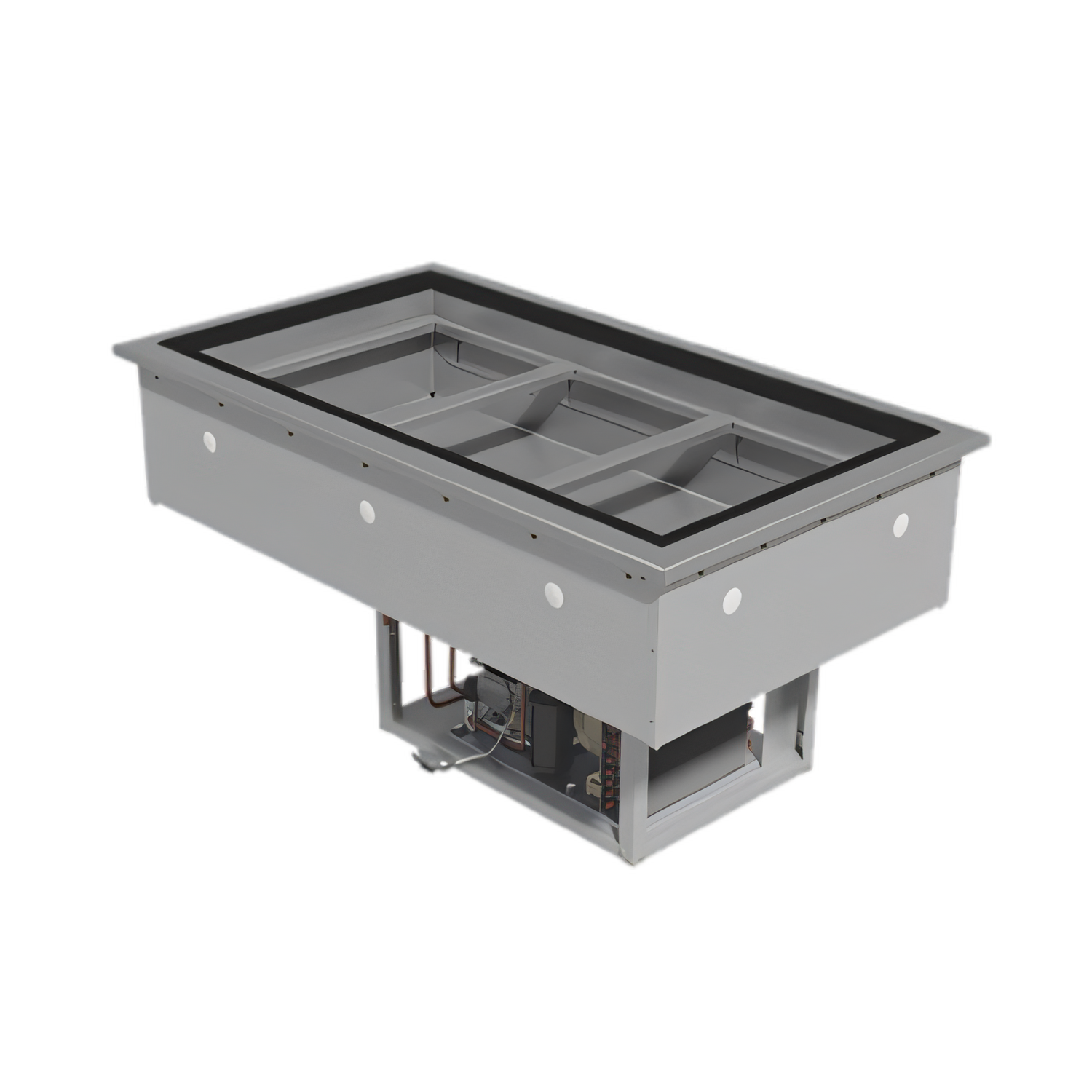

Advance Tabco DIRCP-3 Drop-In Refrigerated Cold Pan

3-Well | 25-1/2" x 45-5/8" Cut-Out | Self-Contained

Keep salads, bottled beverages, yogurts, and other chilled offerings safely below 41°F without sacrificing counter space. The Advance Tabco DIRCP-3 drop-in refrigerated cold pan drops neatly into a 25-1/2" x 45-5/8" cut-out and delivers precise temperature control for three full-size 12" x 20" pans—up to 6-1/4" deep—with extra clearance for cold-air circulation.

Key Features & Benefits

  • 18 ga 304 stainless steel top with black polyethylene marine edge limits heat infiltration and contains spills.
  • One-piece 18 ga 304 stainless liner, 3" recessed, with 1/4" radius coved corners for quick, sanitary wipe-downs.
  • Foamed-in-place insulation—1-1/4" sides & 2" bottom—reduces heat gain and compressor run time.
  • Aluminum-encased copper tube evaporator panels maximize surface contact for faster, even cooling.
  • Self-contained R404-A refrigeration system with hermetically sealed 1/5 HP compressor.
  • Digital, programmable thermostat for accurate set-point control and easy readout.
  • Expansion valve, sight glass, liquid receiver & filter drier for efficient, trouble-free operation.
  • Factory-installed adapter rails & bars fit standard 12" x 20" steam table pans (included).
  • 1" I.P.S. drain speeds cleanup at the end of service.
  • ETLus & ETL-Sanitation listed for electrical & food-safety compliance.

Technical Specifications

Model DIRCP-3
Pan Capacity (3) Full-size 12" × 20" pans, up to 6-1/4" deep
Cut-Out Size (W × L) 25-1/2" × 45-5/8"
Overall Interior Length 45.29"
Refrigerant R404-A (pre-charged)
Compressor 1/5 HP, hermetically sealed
Electrical 115 V / 60 Hz / 1-ph, 8 A, NEMA 5-15P, 8 ft. cord
Shipping Weight 257 lb.
Certifications ETLus, ETL-Sanitation

Installation & Operation Notes

  • Unit is not designed to pull down product; load only pre-chilled foods.
  • If installed in an enclosed cabinet, provide a minimum free-air intake of 200 in² and a separate 200 in² exhaust opening to avoid compressor failure.
  • Maintain ambient temperature below 90°F and 60% RH for optimal performance.
California Proposition 65: This product can expose you to chemicals, including certain ethanes, which are known to the State of California to cause cancer or birth defects. For more information, visit www.p65warnings.ca.gov.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

ETLus, ETL-Sanitation

Height

24.13in

Width

47.0in

Depth

26.75in

Shipping Weight

257.0lbs

Finish

stainless steel top & inner liner, galvanized outer liner

Pan Size

full-size (12" x 20")

Layout

straight

Width (side - side)

43 - 48 inches

Insulation

insulated

Style

self-contained refrigeration

Pan Qty

3-pan

Specifications

Refrigerated Cold Pan, Drop-in, 25-1/2" x 45-5/8" cut out, holds (3) 12" x 20" pans (accommodates pan inserts up to 6-1/4" deep, with additional space below for cold air circulation), stainless steel top, fully self contained condensing unit, digital programmable thermostat, aluminum encased copper tube evaporator panels, expansion valve, R290 refrigerant, ETLus, ETL-Sanitation
