Description

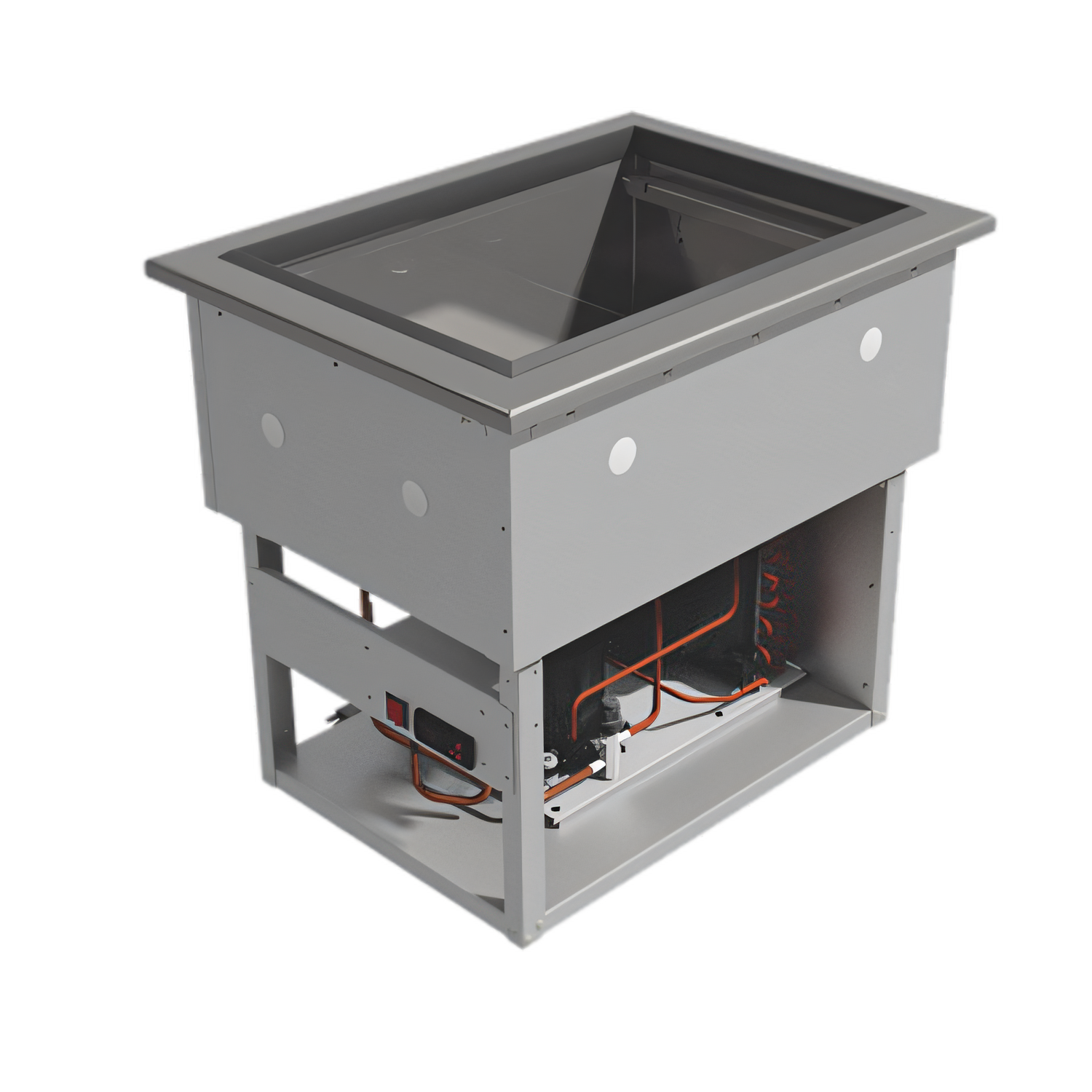

Advance Tabco DIRCP-1 Drop-In Refrigerated Cold Pan
25-1/2" x 18-5/8" cut-out • self-contained 115 V • holds one 12" × 20" panDesigned for busy salad bars, beverage stations, and grab-and-go counters, the DIRCP-1 keeps pre-chilled foods cold and appetizing while fitting cleanly into a single countertop cut-out. Advance Tabco’s rugged 18-gauge stainless construction, foamed-in insulation, and high-efficiency refrigeration system deliver reliable, even cooling shift after shift.
Why You’ll Love It
- Accepts one full-size 12" × 20" pan (up to 6-1/4" deep) with extra space below the pan for cold-air circulation.
- 18 ga. 304 stainless steel top with black polyethylene marine edge helps contain spills and protects surrounding counters.
- 3" recessed, one-piece liner with 1/4" radius corners pitches to a 1" I.P.S. drain for fast, sanitary clean-up.
- Aluminum-encased copper tube evaporator panels maximize contact area for faster pull-down and lower energy use.
- Foamed-in-place polyurethane insulation (1-1/4" sides, 2" bottom) reduces heat gain and operating costs.
- Self-contained 1/5 HP compressor with digital, programmable thermostat and easy-read temperature display.
- Expansion valve, sight glass, liquid receiver, and filter drier promote efficient, trouble-free refrigeration.
- Ships fully charged with eco-friendly R404A refrigerant; simply plug into any 115 V, 15 A outlet (8 ft cord & NEMA 5-15P included).
- Includes stainless steel adapter bars to securely hold standard pans.
- ETLus & ETL-Sanitation listed for electrical safety and food-service hygiene compliance.
At-a-Glance Specifications
| Model | DIRCP-1 |
|---|---|
| Pan Capacity | (1) 12" × 20" full-size pan, up to 6-1/4" deep |
| Countertop Cut-Out | 25-1/2" W × 18-5/8" D |
| Overall Inside Length (L) | 20.00" |
| Overall Inside Width (B) | 18.32" |
| Refrigerant | R404A |
| Compressor | Self-contained, hermetically sealed 1/5 HP |
| Electrical | 115 V / 60 Hz / 1 Ph • 8 A • NEMA 5-15P |
| Drain | 1" I.P.S. |
| Unit Weight | 163 lb |
| Construction | 18 ga. 304 SS top & liner, 22 ga. galvanized outer jacket |
| Certifications | ETLus, ETL-Sanitation, Prop 65 |
Installation & Operation Notes
- Provide a minimum of 200 in² of unrestricted intake air and a separate 200 in² exhaust when installing in an enclosed cabinet.
- Unit is intended to hold product already chilled to safe temperatures; it is not designed to cool hot food.
- Ensure the drain line is connected before first use to prevent water build-up.
Advance Tabco reserves the right to modify specifications without notice as part of its continuous product improvement program.
