AccuTemp E62083D100 DBL Evolution Steamers (Countertop & Floor)
AccuTemp E62083D100 DBL Evolution Steamers (Countertop & Floor) is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

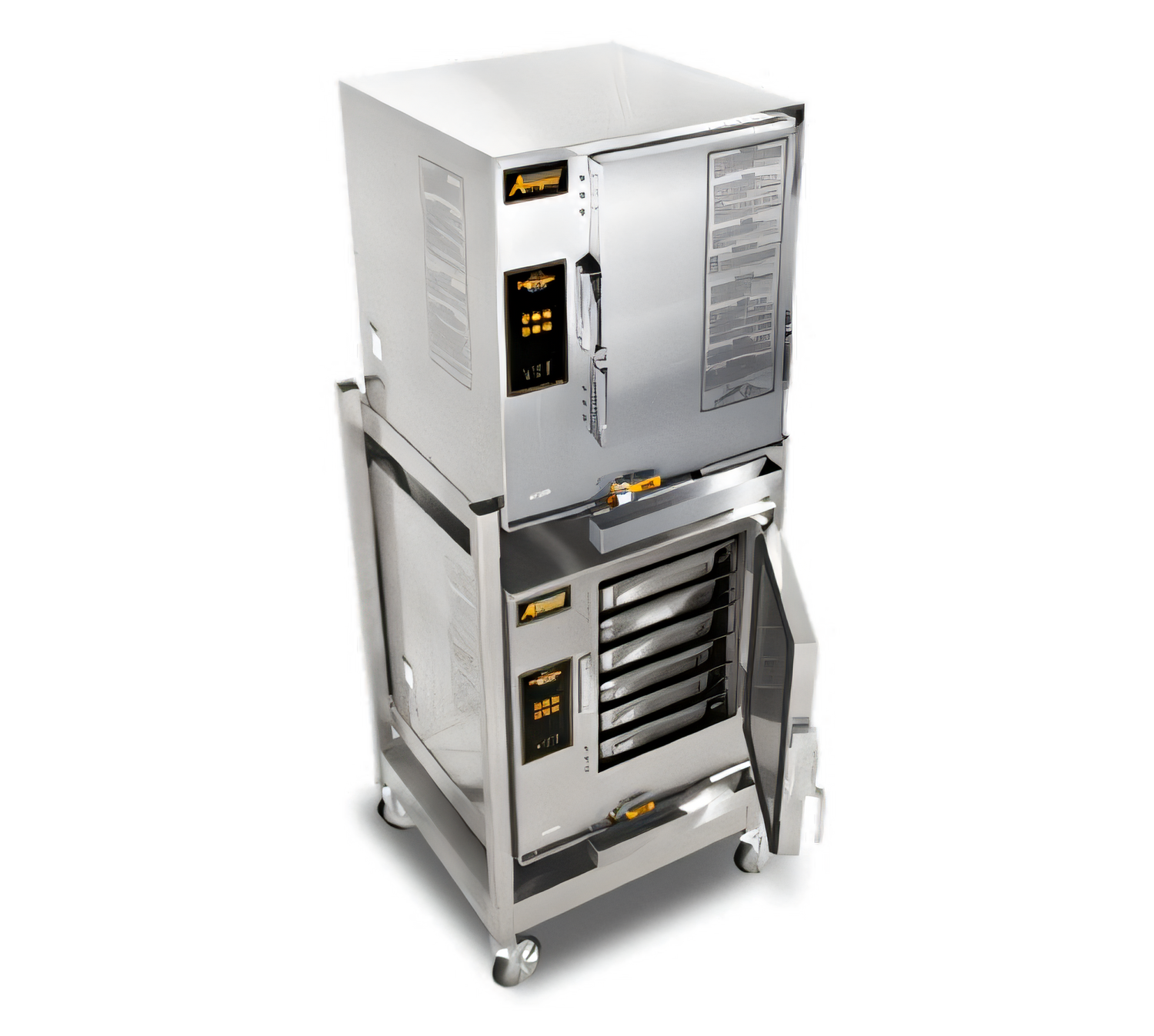

AccuTemp Evolution™ Double 6-Pan Connectionless Steamer — Quick Ship
Model E62083D100 DBL | 2 × 10 kW | 208 V / 60 Hz / 3-Ph | Stand IncludedHigh-volume steaming with zero plumbing. AccuTemp’s patented Steam Vector Technology (SVT) turns ordinary water into high-velocity, perfectly distributed steam—no boiler, no moving parts and no headaches. Just plug it in, fill the reservoirs and start cooking.
Key Benefits
- Connection-free design — no water or drain lines required, so you can install it anywhere electricity is available.
- SVT delivers faster cook times, greater pan-to-pan uniformity and lower energy use (ENERGY STAR® qualified).
- Independent digital controls with temperature read-out, programmable timers and Cook/Hold modes for each cavity.
- Warranty is never voided by water quality; no filtration or de-liming schedule is required.
- Field-reversible doors can be opened at any time during the cycle for easy batch loading.
- Front-mounted drain valve and dishwasher-safe racks/panels slash daily clean-up time.
- Hoodless operation in most jurisdictions (EPA 202 / NFPA 96 4.1.1.2 evaluated).
- Made in the USA and certified cULus, UL EPH & NSF/ANSI 4.
Capacities
Compartments | 2 (independently controlled) |
---|---|
Pans per compartment | 6 × 12 × 20 × 2.5 in (#200) |
Total full-size pans | 12 at 2.5 in deep | 8 at 4 in deep (#400) |
Reservoir capacity | 3 gal per cavity (manual or auto-fill) |
Electrical & Installation
Heat input | 10 kW per cavity (20 kW total) |
---|---|
Voltage | 208 V / 60 Hz / 3-Ph |
Current draw | 28 A per cord |
Plugs | (2) NEMA L15-30P, 5 ft factory-installed cords |
Recommended breaker | 30 A, dedicated branch circuit (each) |
Water / drain hook-up | Not required |
Ventilation | No Type I or II hood required in most states* |
Footprint & Shipping
Overall size (W × D × H) | 32 × 36 × 71 in (with stand) |
---|---|
Shipping weight | ≈ 416 lb (two crates) |
Stand | Stainless “ergo-low” stand — choose casters, bullet or flanged feet |
What’s in the Box
- (2) Evolution™ 6-pan steamer cavities pre-stacked on stand
- (2) 5 ft power cords with NEMA L15-30P plugs
- Wire pan racks, SVT steam collector & distributor panels
- Owner’s manual & quick-start guide
- Two-year parts & labor warranty + Lifetime Service & Support Guarantee
Daily Cleaning in 3 Easy Steps
- Drain reservoir, refill with fresh water & 1 cup white vinegar, run 15 min in Cook mode.
- Cool, drain, remove dishwasher-safe racks & panels for washing.
- Wipe interior dry, leave door ajar overnight — that’s it, no harsh chemicals or deliming.
*Always verify local code requirements. Quick-Ship units typically leave the factory within 48 hours; call to confirm current lead time.
