AccuTemp ALTWE-30 Edge Series™ Steam Kettles
Description

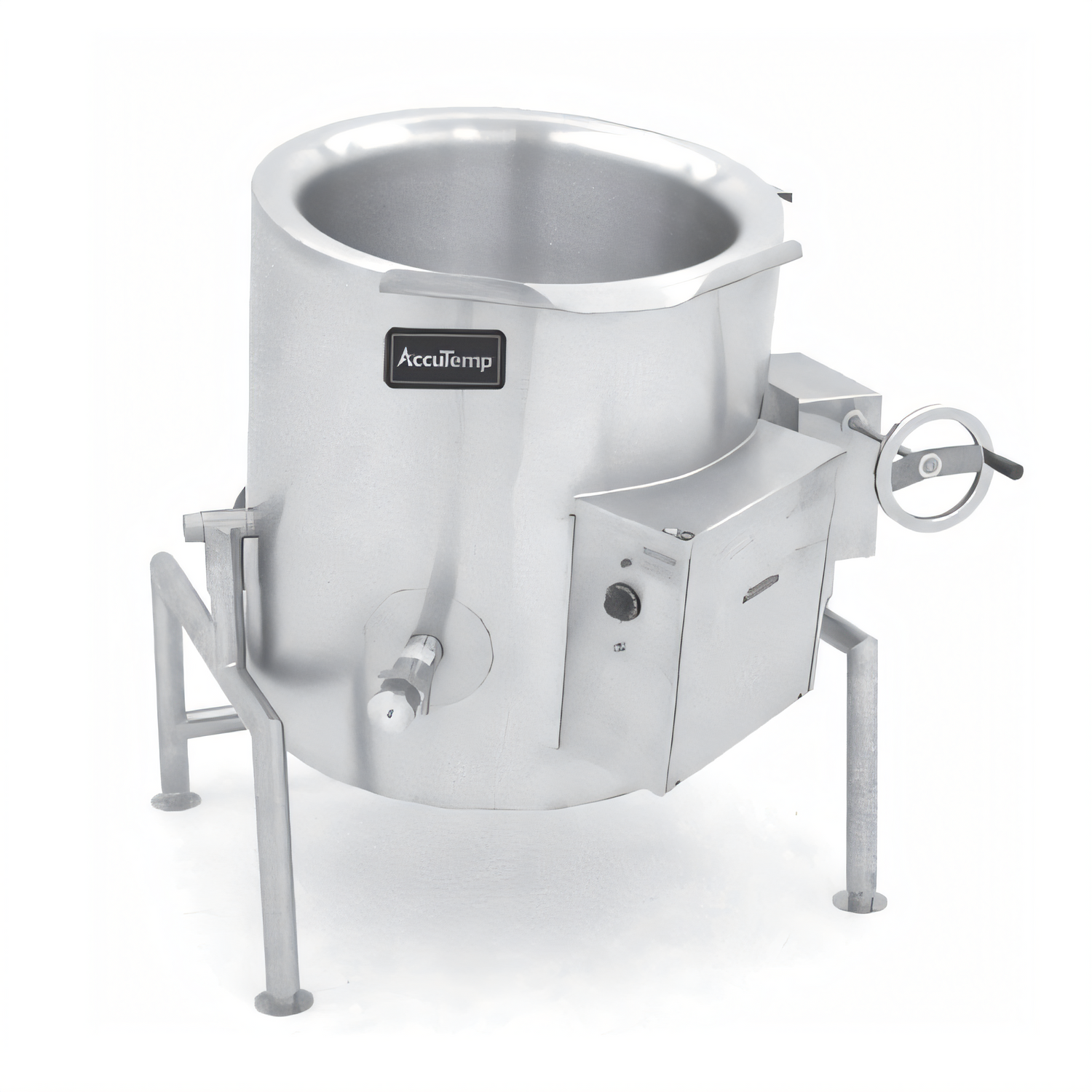

Edge Series™ 30-Gallon Electric Tilting Kettle
Model ALTWE-30 • Floor-Mounted • 2/3 Jacketed • Made in USAEngineered for demanding commercial kitchens, the AccuTemp Edge Series™ ALTWE-30 delivers high-volume, uniform cooking with the safety and durability only a fully insulated, 316 stainless-steel kettle can provide. Precise electric heat, a smooth self-locking tilt and an industry-leading protection system make this 30-gallon workhorse the smarter way to braise, simmer, boil and hold.
Why You’ll Love It
- Seamless deep-drawn 316 SS liner resists pitting & is easy to clean.
- 2/3 steam jacket with Insulated for Safety™ full-body insulation—cooler exterior, lower energy loss.
- Field-replaceable heating elements and user-set thermostat (150–260 °F / 65–140 °C).
- Comprehensive kettle-protection package: pressure relief valve, air eliminator, jacket-water fill port, low-water cut-off with indicator light & tilt cut-off switch.
- Self-locking worm-gear tilting system mounted to a reinforced 304 SS gear box for controlled, 50° pours.
- Robust 304 SS U-frame with adjustable flanged feet—no additional masonry anchoring required.
- UL & NSF listed; built in Fort Wayne, Indiana.
Technical Specifications
| Capacity | 30 gal / 113.6 L |
|---|---|
| Jacket Coverage | 2/3 (steam) |
| Operating Pressure | 30 PSI max. |
| Temperature Range | 150 – 260 °F (65 – 140 °C) |
| Power Rating | 24 kW electric |
| Construction | 316 SS kettle liner, 304 SS jacket & exterior, fully insulated |
| Tilt Mechanism | Hand-crank, self-locking worm gear |
| Mounting | Floor, U-frame 304 SS with adjustable flanged feet |
| Certifications | UL, NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
Electrical Requirements – Model ALTWE-30
| Voltage | 1-Phase Amps/Leg | 3-Phase Amps/Leg |
|---|---|---|
| 208 V | 115.4 A | 66.6 A |
| 240 V | 100.0 A | 57.7 A |
| 380 V | 63.2 A | 36.5 A |
| 415 V | 57.8 A | 33.4 A |
| 440 V | 54.5 A | 31.5 A |
| 480 V | 50.0 A | 28.9 A |
Approximate Dimensions
| Overall Width (F) | 44.1 in / 1120 mm |
|---|---|
| Overall Depth (L) | 36.0 in / 914 mm |
| Overall Height (C) | 43.5 in / 1105 mm |
| Pour Height (Y) | 37.4 in / 950 mm |
Popular Factory-Installed Options (sold separately)
- Single or dual fill faucet with 12" or 18" swing nozzle
- 60" flexible spray hose (vinyl or stainless)
- Electric cook-timer with buzzer
- 316 SS liner upgrade (already standard on 30 gal unit)
- 2" or 3" draw-off valve (compression or ball type)
- Tri-basket or nylon bag insert for small-batch cooking
Registration required at installation to activate warranty. See Owner’s Manual for installation clearances and local code compliance.
