AccuTemp ALTLGB-60F Edge Series™ Steam Kettles
AccuTemp ALTLGB-60F Edge Series™ Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

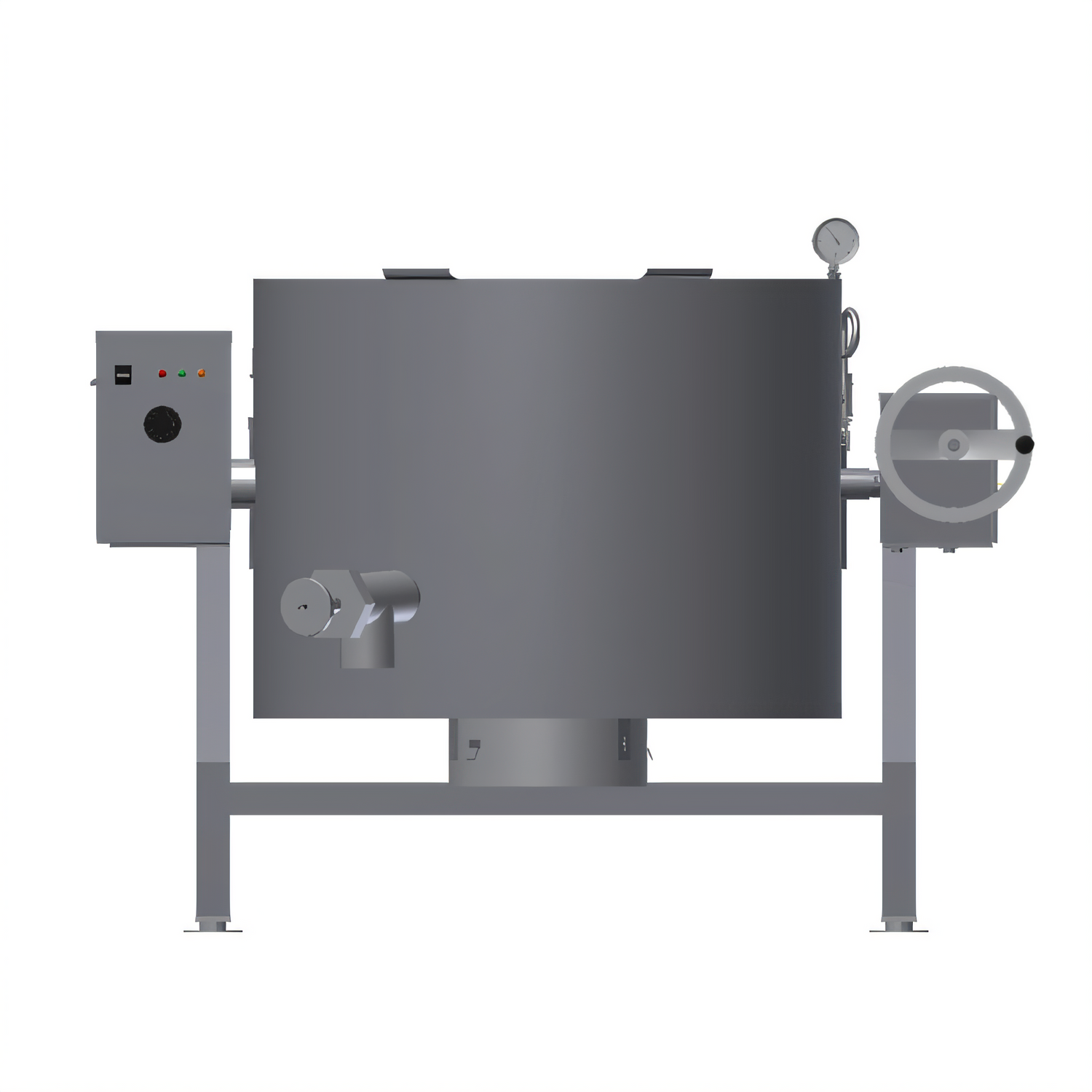

Edge Series™ 60-Gallon Gas Tilting Kettle
Model ALTLGB-60F | AccuTempBuilt for high-volume kitchens that refuse to compromise, the AccuTemp Edge Series™ 60-Gallon Gas Tilting Kettle delivers fast, even cooking, effortless pouring and legendary durability— all in a self-contained, boiler-free package.
Why You’ll Love It
- Massive 60-gallon capacity handles soups, sauces, pasta, chili & more.
- 131,400 BTU burner with electronic ignition provides rapid heat-up and recovery.
- Full 30 PSI steam jacket—insulated 3"–14" thick—keeps heat where it belongs and keeps exterior surfaces cooler to the touch.
- Deep-drawn 304 stainless liner with a seamless interior and 3" reinforced radius lip for drip-free pouring and easy cleaning.
- Ergo-low rim height reduces lifting strain and improves operator safety.
- Self-locking worm-gear tilt with cut-off switch gives you precise, one-handed control.
- 2" tubular stainless frame with adjustable flanged feet stands up to years of commercial abuse.
- Thermostatic control (150 °F – 260 °F) plus pressure gauge, relief valve, air eliminator & automatic low-water cutoff keep you in complete control.
- UL & NSF listed. Proudly made in the USA.
Performance & Control
- Natural or propane gas (factory ready) with ¾" IPS connection.
- Electronic spark ignition, 120 V standard (1 A); 208 V/240 V optional.
- Kettle Protection System guards against low-water and over-temperature conditions.
- Self-contained design—no external boiler or steam generator required.
Specs at a Glance
Capacity | 60 gal | 227 L |
---|---|
Heat Source | Gas-fired, natural or propane |
Input | 131,400 BTU/h (natural) • 131,100 BTU/h (propane) |
Steam Jacket Rating | 30 PSI, full jacket |
Operating Temp Range | 150 °F – 260 °F (65 °C – 126 °C) |
Ignition | Electronic spark, push-button |
Liner / Jacket Material | 304 stainless steel, seamless deep-drawn |
Tilt Mechanism | Self-locking, permanently lubricated worm gear |
Electrical | 120 V, 50/60 Hz, 1 Ph, 1 A (208/240 V optional) |
Certifications | UL, NSF, American-Made |
Warranty | 1-year parts & labor (U.S./Canada) |
Popular Accessories (sold separately)
- Lift-off or actuator-assisted cover
- 2" or 3" draw-off valve (compression or ball type)
- Dual-faucet rinse assembly with 12" or 18" swing nozzle
- Flexible spray hose ⎯ vinyl or stainless
- Disc strainers, baskets & tri-basket inserts
- Programmable timer with buzzer
- Automatic water-fill meter & kettle tools kit
Registration required at installation for full warranty coverage. See Owner’s Manual for details.
