AccuTemp ALTGSE-40 Edge Series™ Braising Pans & Tilt Skillets
AccuTemp ALTGSE-40 Edge Series™ Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
AccuTemp ALTGSE-40 Edge Series™ Braising Pans & Tilt Skillets
Description

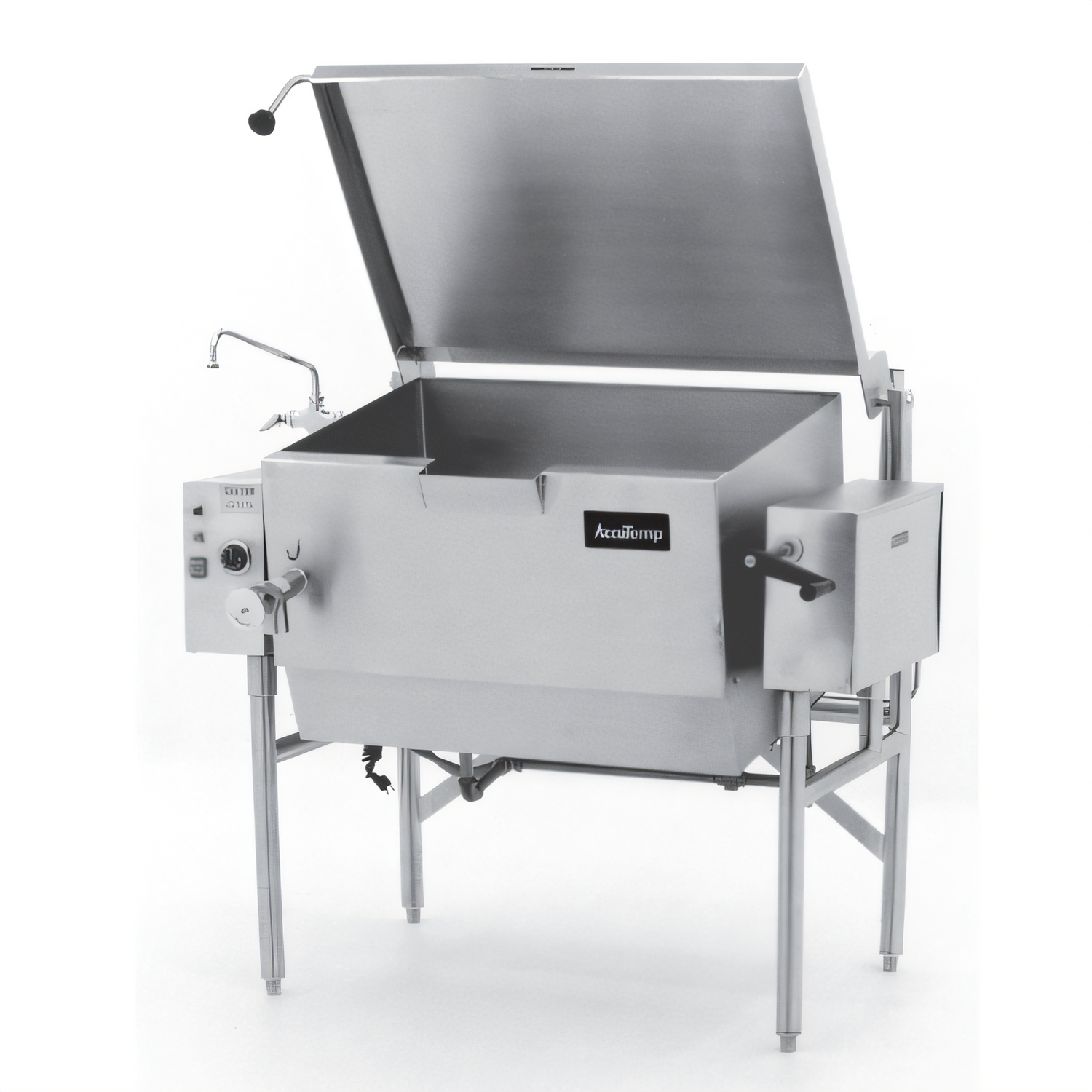

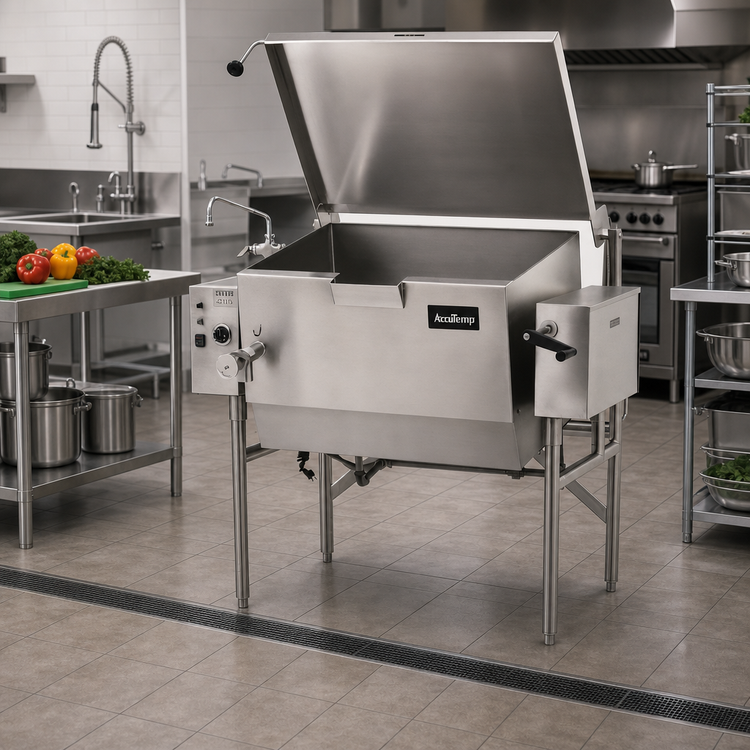

AccuTemp Edge Series™ 40-Gallon Gas Tilting Skillet
Model ALTGSE-40 | Manual Tilt | Natural 120,000 BTU / Propane 100,000 BTUReplace multiple pieces of equipment with one powerhouse. The Edge Series™ 40-gallon tilting skillet sears, braises, steams, sautés, holds and lets you pour out every last drop with a smooth, self-locking manual tilt. Built to thrive in the busiest kitchens, it pairs rugged 304 stainless-steel construction with AccuTemp’s precision temperature control and award-winning safety lid design.
Key Features

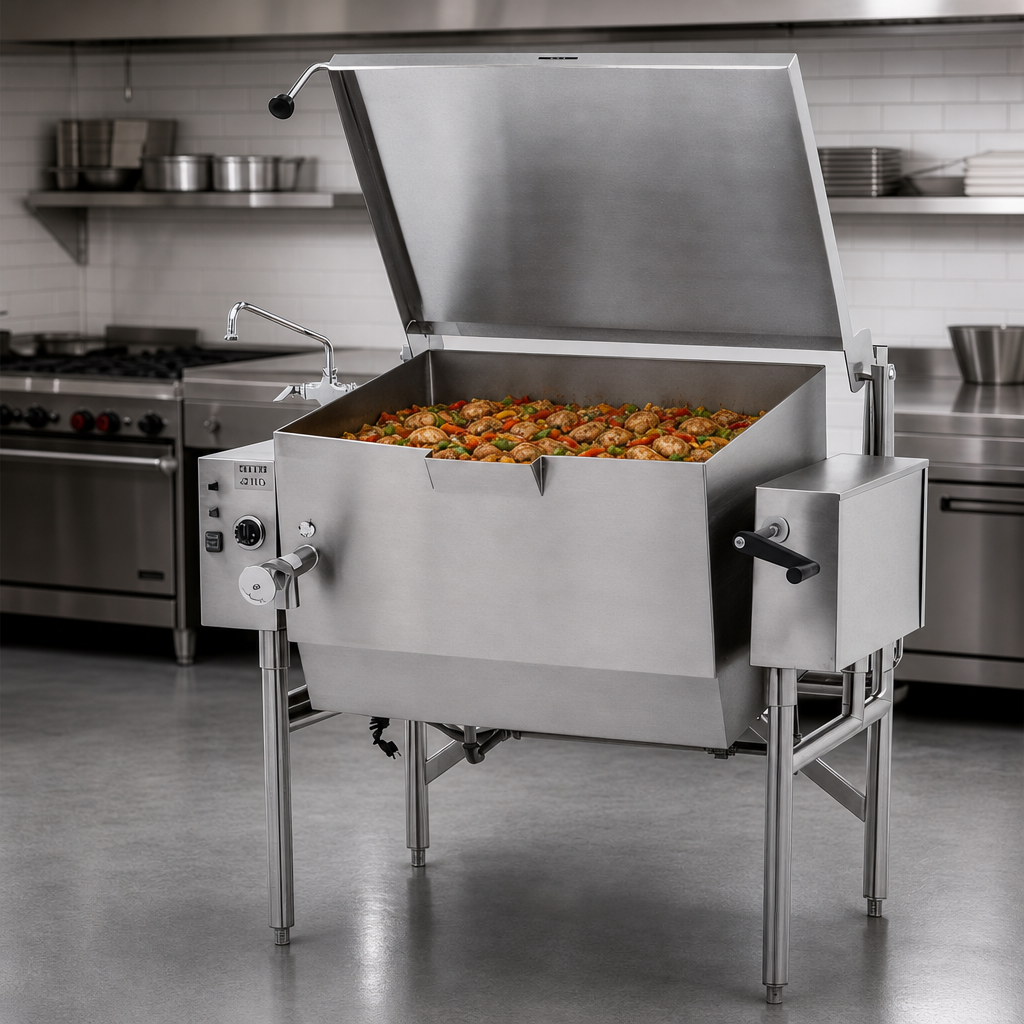

- Massive 40-gallon (151 L) capacity—up to 400 portions per batch.
- Center-trunnion, self-locking worm-gear tilt mechanism rotates > 90° for complete emptying.
- Actuator-assisted, spring-balanced lid with full-width condensate drip shield & rear steam vent.
- Seam-welded 304 stainless pan, clad cooking surface & open 1-5/8″ tubular leg stand.
- Electronic direct-spark ignition—no standing pilot, instant lighting.

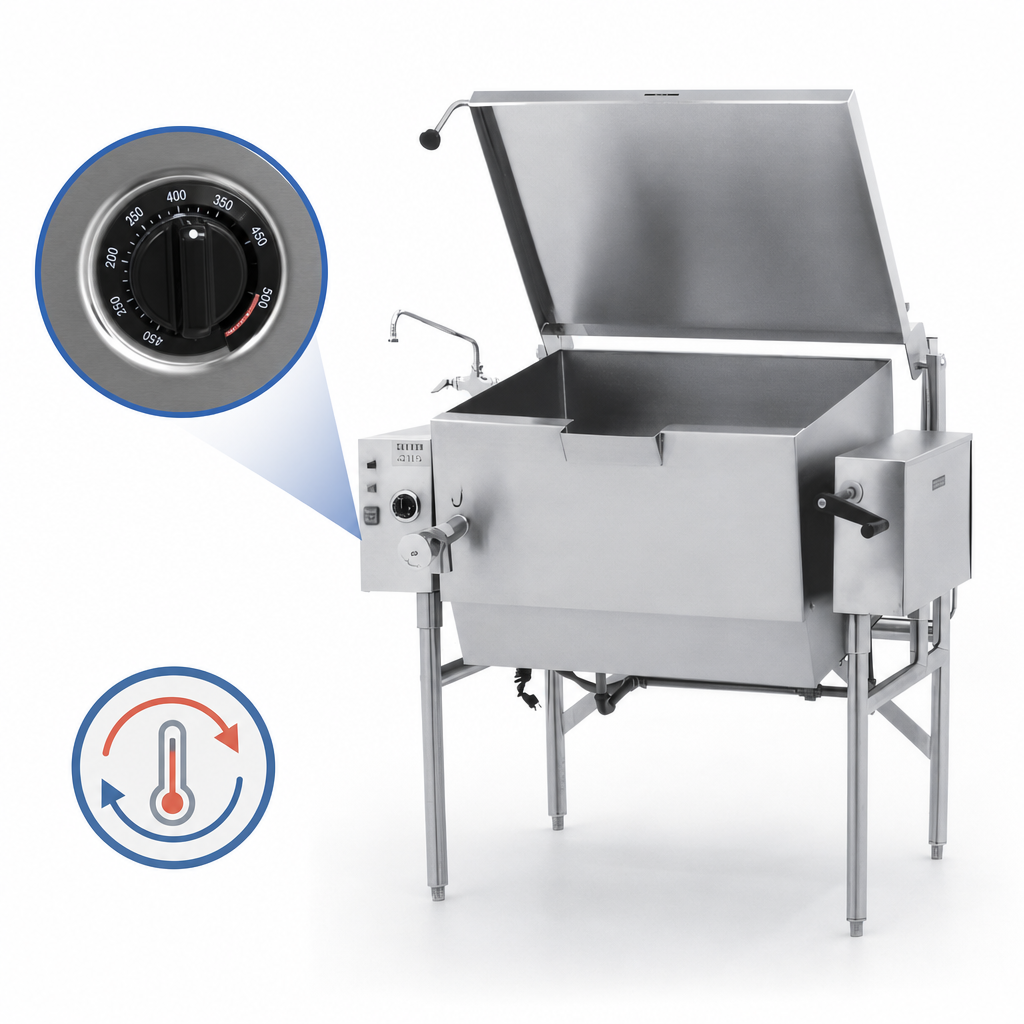

- Thermostatically controlled 175 °F – 400 °F (80 °C – 204 °C) with high-limit safety.
- Reinforced, water-resistant stainless control console.
- Adjustable bullet feet for perfect leveling and easy floor cleaning.
- Made in the USA; UL & NSF listed.
Performance Specifications
| Capacity | 40 gal / 151 L |
|---|---|
| Heating source | Natural or Propane Gas |
| Input (Natural) | 120,000 BTU/hr |
| Input (Propane) | 100,000 BTU/hr |
| Thermostat range | 175 °F – 400 °F (80 °C – 204 °C) |
| Ignition | 120 V direct-spark combination gas control |
| Electrical | 120 V / 60 Hz / 1-phase |
| Gas connection | ½″ NPT (IPS) rear |
| Pan depth | 9″ (229 mm) |
| Tilt angle | Exceeds 90° |
| Shipping weight | Approx. 550 lb / 249 kg |
| Construction | 304 stainless pan, lid, frame & console |
| Certifications | UL, UL Sanitation, NSF |
Popular Accessories (Sold Separately)
- 1½″, 2″ or 3″ draw-off valve kits
- 48″ or 60″ flexible spray-hose assemblies
- Automatic water-fill meter
- Perforated cooking / steaming basket (11″ × 20½″ × 5″)
- Pour-lip pan holder & pour-lip strainer
- Casters with restraining device kit
Peace-of-Mind Warranty
Includes AccuTemp’s 1-year parts & labor warranty (U.S. & Canada). Register at installation to activate coverage.
