AccuTemp ALTGSE-30 Edge Series™ Braising Pans & Tilt Skillets
Description

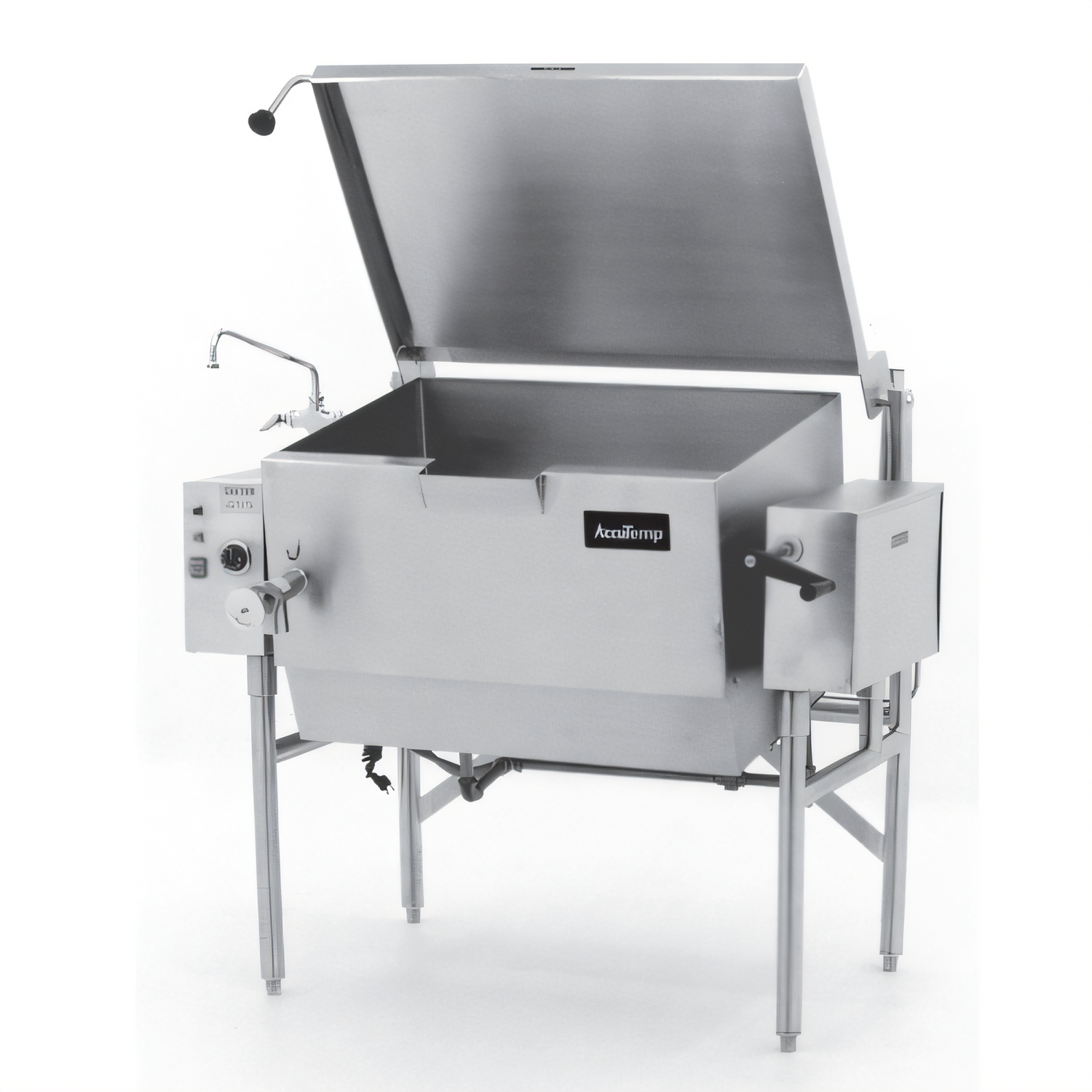

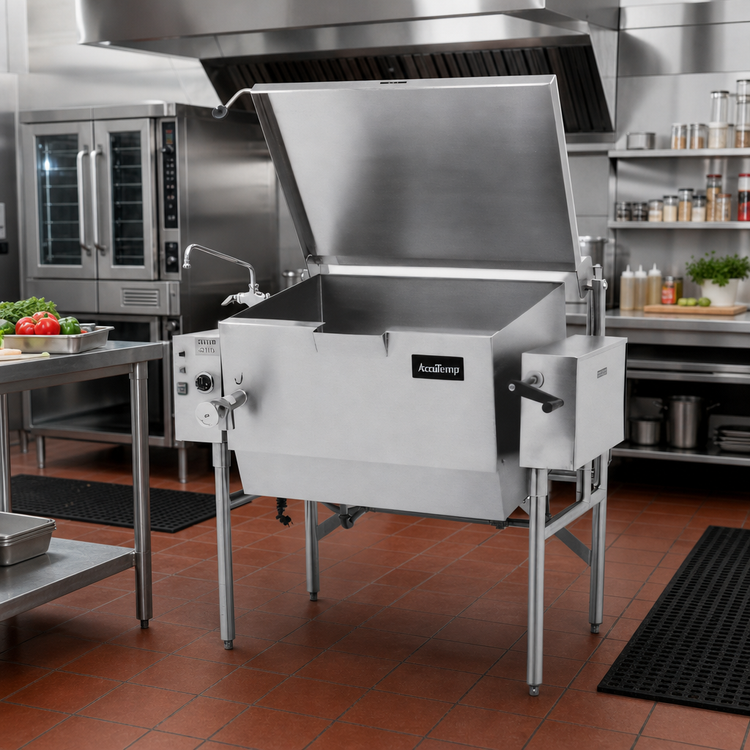

Edge Series™ 30-Gallon Gas Tilting Skillet
Model ALTGSE-30 | 90,000 BTU Natural Gas | UL & NSF ListedThe AccuTemp Edge Series™ 30-gallon tilting skillet is the ultimate all-in-one cooking station—braise, sauté, grill, steam, fry or hold large batches in a single, space-saving appliance. A seamless 304 stainless pan, precise thermostat and effortless 90° manual tilt deliver speed, consistency and worker safety in the busiest commercial kitchens.
Performance & Construction Highlights
- 90,000 BTU burner with electronic direct-spark ignition (120 V, 1-Ph) for instant, reliable starts.
- 30-gal / 114 L capacity, 9 in. pan depth—ideal for up to 250 portions of soups, sauces or proteins.

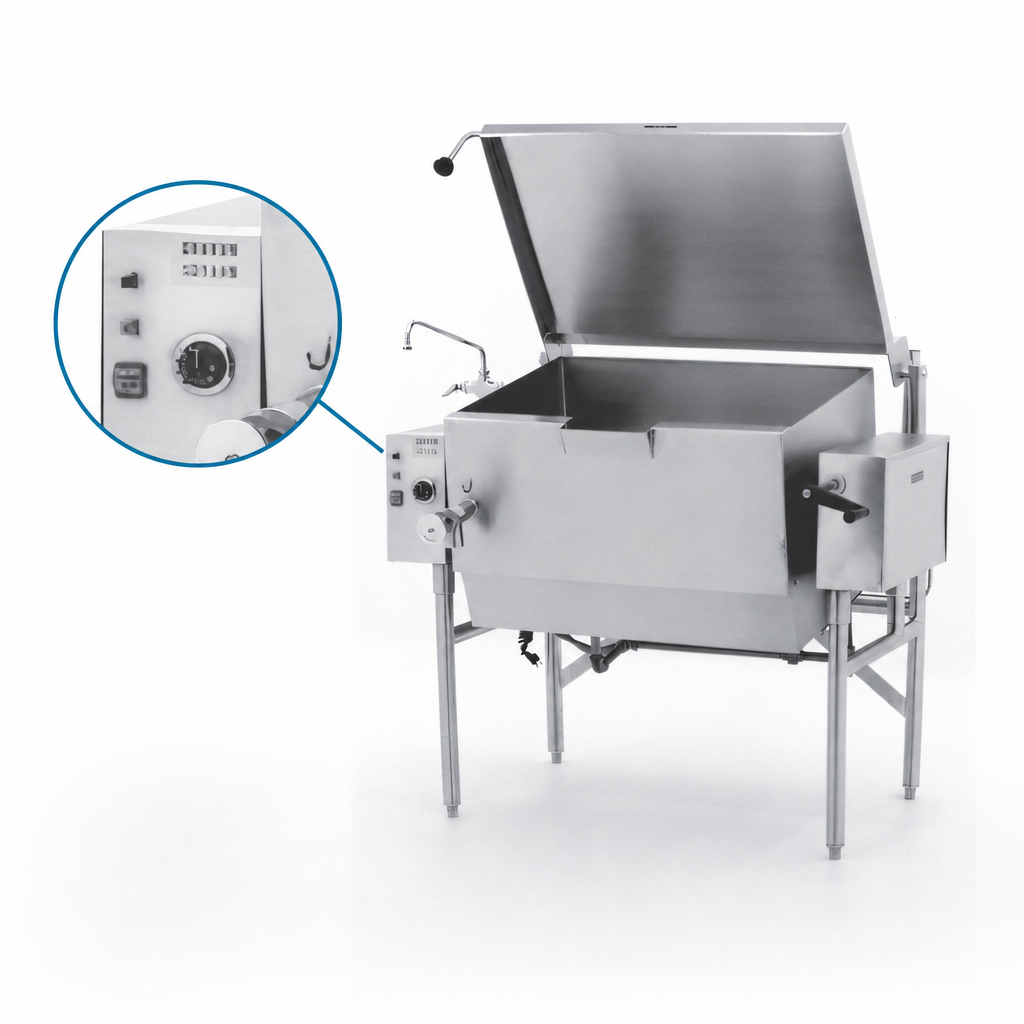

- Thermostat-controlled heat from 175 °F-400 °F (80 °C-204 °C) plus high-limit safety cut-off.

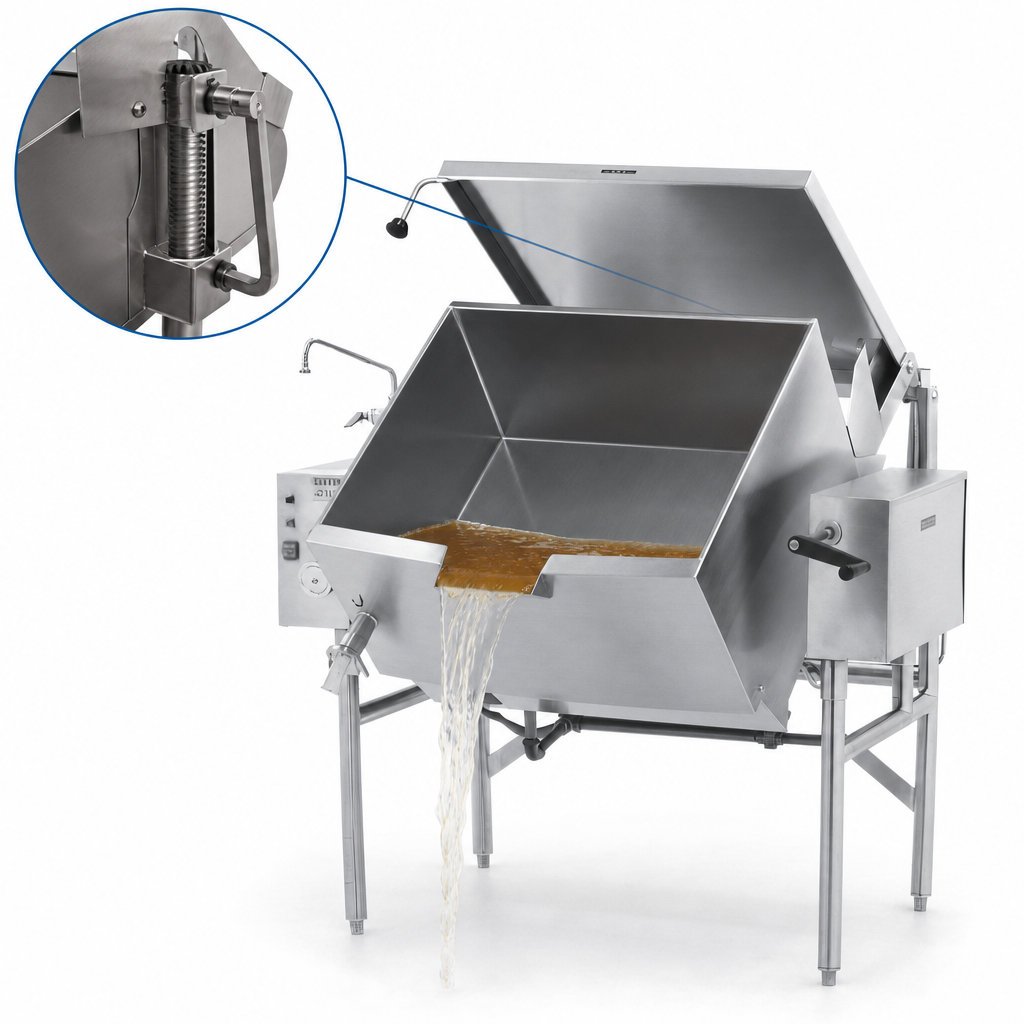

- Center-trunnion, self-locking worm-gear tilt rotates the pan more than 90° for complete emptying.
- Patented, actuator-assisted lid with full-width condensate drip shield & rear steam vent.
- Seam-welded 304 SS cooking surface with coved corners—no rivets, no food traps, no hassle.
- Water-resistant, reinforced control console stands up to daily wash-downs.
- Open 1 5/8 in. tubular stainless frame with adjustable bullet feet for fast, level installation.
- Built in the USA; fully certified to UL Gas-Fired, UL Sanitation and NSF standards.
Why a Tilting Skillet?
- Versatility – Replace kettles, braising pans and griddles with one powerhouse.
- Labor savings – Smooth 90° pour-off eliminates heavy lifting and reduces injury risk.
- Energy efficiency – Cladded pan bottom distributes heat evenly and shortens cook times.
- Consistency – Precise, set-and-forget thermostat holds target temps without constant monitoring.
Specifications
| Capacity | 30 gal (114 L) |
|---|---|
| Pan Depth | 9 in (229 mm) |
| Heat Source | Natural Gas, 90,000 BTU/hr |
| Ignition | Electronic direct-spark combination gas control |
| Temperature Range | 175 °F – 400 °F (80 °C – 204 °C) |
| Electrical | 120 V / 60 Hz / 1-Ph (0.5 A) |
| Gas Connection | ½ in NPT; inlet pressure 5-7" WC |
| Tilt Mechanism | Manual, center-trunnion, self-locking worm gear |
| Construction | 304 SS seam-welded pan & lid, 304 SS tubular frame |
| Overall Dimensions* | 46.1 W × 37.5 D × 38.75 H in |
| Shipping Weight* | 460 lb (209 kg) |
| Certifications | UL, UL Sanitation, NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
*Dimensions & weight listed for model ALTGSE-30 with 1.5 in. draw-off valve.
Factory Options & Accessories
- 1.5", 2" or 3" draw-off valve with strainer
- 48" or 60" flexible spray-hose assembly
- Automatic water-fill meter
- Perforated cooking/steaming basket (11" × 20.5" × 5")
- Pour-lip strainer & pour-lip pan holder
- Casters & restraining device kit for mobile installations
Select accessories from the dropdowns above or contact us for guidance.
