AccuTemp ALTES-40 Edge Series™ Braising Pans & Tilt Skillets
AccuTemp ALTES-40 Edge Series™ Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
AccuTemp ALTES-40 Edge Series™ Braising Pans & Tilt Skillets
Description
AccuTemp Edge Series™ 40-Gallon Electric Tilting Skillet (Model ALTES-40)

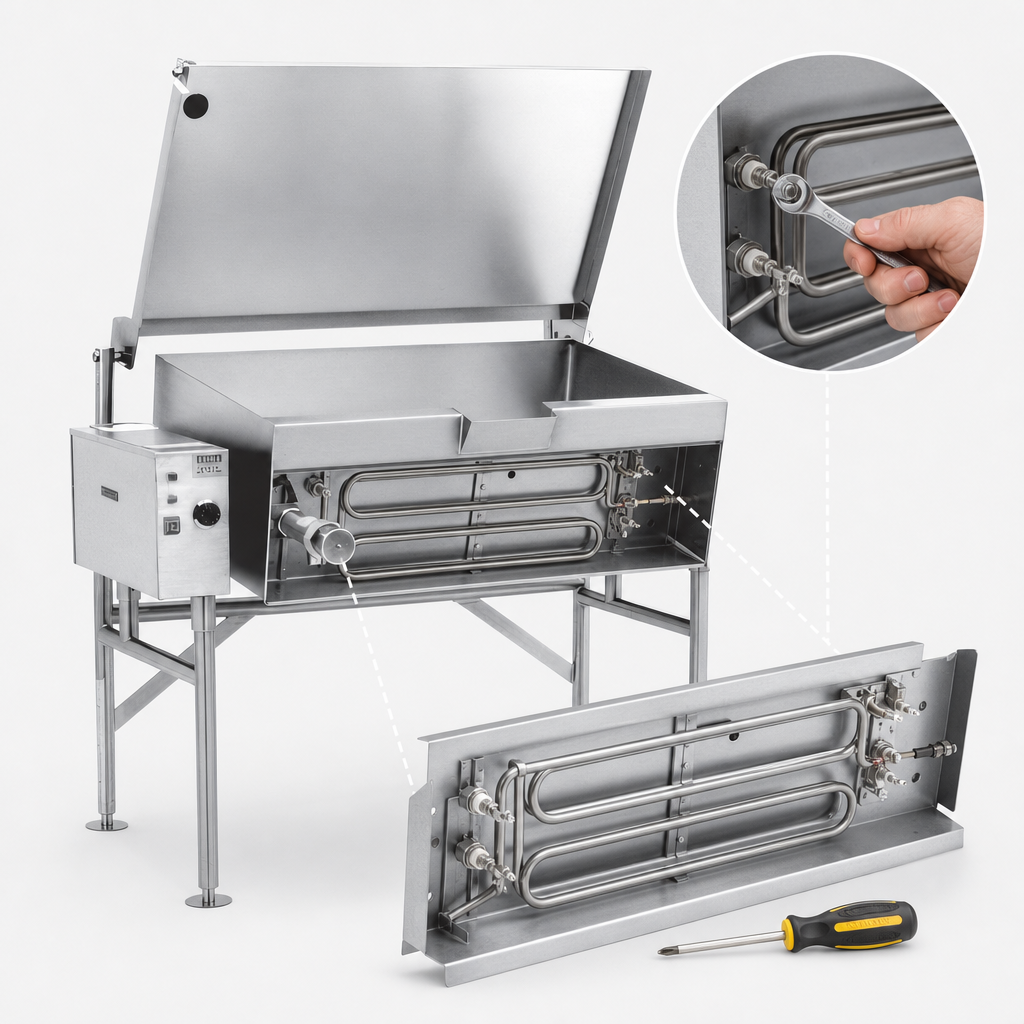

The heavy-duty, do-everything workhorse built for high-volume kitchensBraise, sear, sauté, simmer or hold—one pan does it all. With a cavernous 40-gallon (152 L) capacity, field-replaceable 17.7 kW heating elements and a patented manual tilt system, the Edge Series™ skillet delivers the speed, consistency and durability demanded by busy restaurants, hotels, schools and correctional facilities.
Key features
- 40 gal / 152 L capacity handles up to 380 lb of product per batch.
- 5⁄16"-thick, seam-welded 304 SS pan with coved corners for effortless clean-up.
- AccuTemp manual center-trunnion tilt with self-locking worm gear rotates > 90° for a complete pour.
- Actuator-assisted, spring-balanced cover with full-width condensate drip shield & rear steam vent.

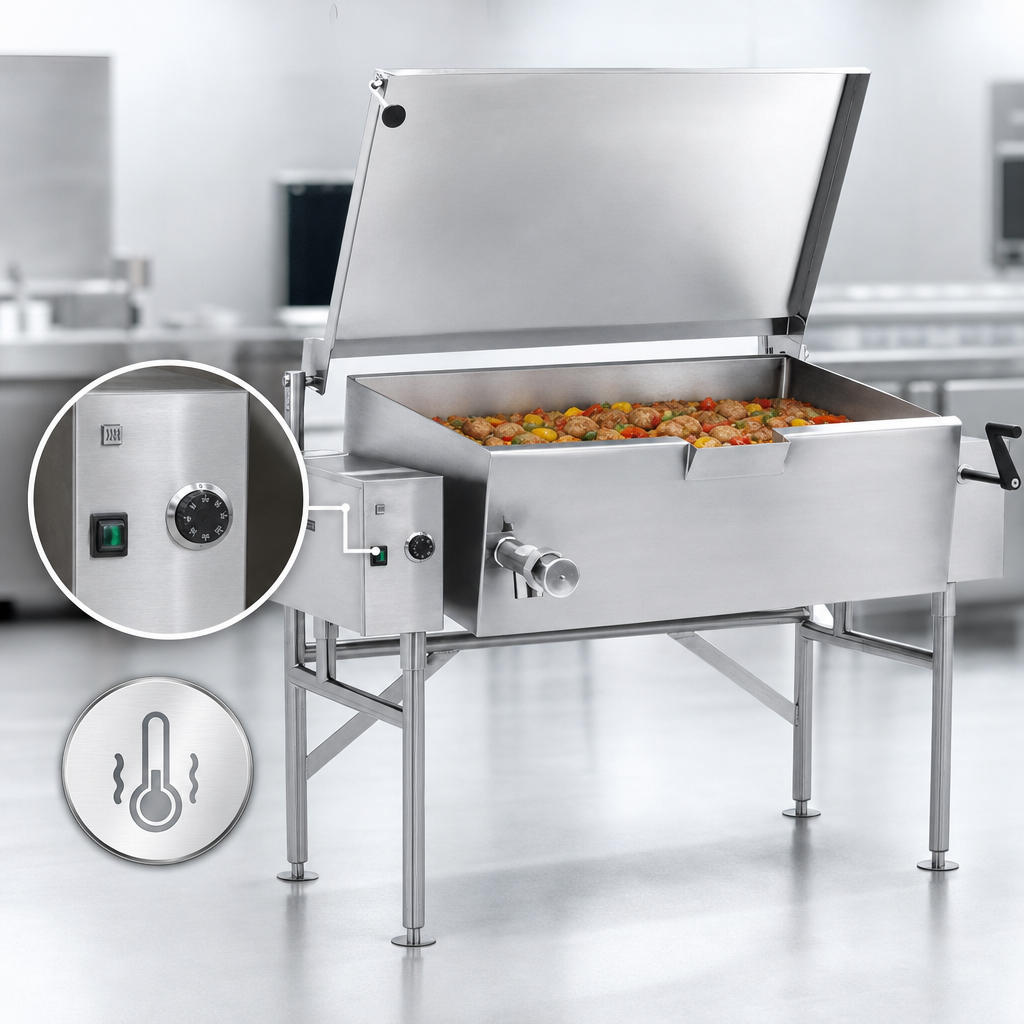

- 175 – 400 °F (80 – 204 °C) thermostat plus independent high-limit safety.
- Reinforced, water-resistant stainless control console stands up to wash-downs.
- Open 1 ⅝" tubular leg frame with adjustable bullet feet; ships knocked-down to fit through a 26" × 66" doorway.
- UL & NSF listed; proudly made in the USA.
Product specifications
| Capacity | 40 gal (151.4 L) |
|---|---|
| Heating output | 17.7 kW electric, field-replaceable elements |
| Temperature range | 175 °F – 400 °F (80 °C – 204 °C) |
| Pan interior (W × D × H) | 41" × 25 ⅛" × 9" |
| Overall width (F) | 56.1" |
| Overall depth (L) | 47.5" |
| Overall height | 38 ¾" (lid closed) |
| Tilt angle | > 90° |
| Construction | All 304 stainless steel pan, lid, frame & console |
| Stand | Open 1 ⅝" tubular legs with adjustable bullet feet |
| Certifications | UL, NSF |
Electrical data (ALTES-40)
| Voltage | Phase | Amps / Leg |
|---|---|---|
| 208 V | 1-phase | 76.9 A |
| 208 V | 3-phase | 44.4 A |
| 380 V | 3-phase-Y | 27.0 A |
| 415 V | 3-phase-Y | 24.6 A |
| 440 V | 3-phase-Y | 23.3 A |
| 480 V | 3-phase-Y | 21.3 A |
Other voltages and single-phase configurations are factory-available—please specify when ordering.
Popular options & accessories
- 48" or 60" flexible spray rinse hose (vinyl or stainless)
- Single-valve water fill with hose assembly
- Perforated cooking/steaming basket (11" × 20 ½" × 5")
- Draw-off valves: 1.5", 2" or 3", with spout, strainer & hose kits
- Automatic water-fill meter
- Casters (locking/non-locking) & restraining devices
- Correctional package, flanged feet or restraining bracket kit
- Flat-bottom scoop, fry scoop & #10 can holder
- 3-part cleaning tool & care kit
Warranty & support
Backed by AccuTemp’s limited 1-year parts & labor warranty and a nationwide network of factory-authorized service agents.
