AccuTemp ALTES-30 Edge Series™ Braising Pans & Tilt Skillets
Description

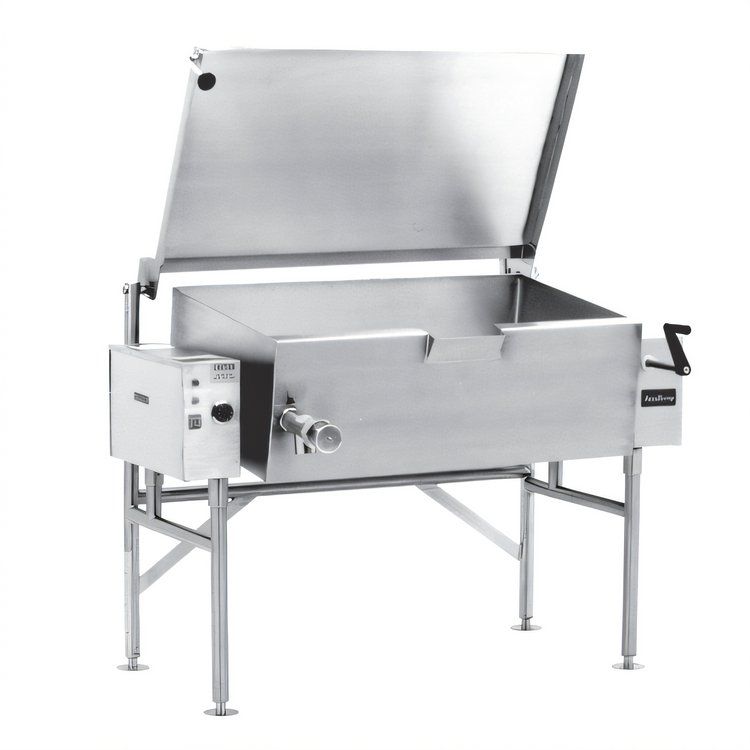

AccuTemp Edge Series™ 30-Gallon Electric Tilting Skillet
Model ALTES-30 | Made in the USABring the speed and versatility of a braising pan, kettle, griddle and holding cabinet to a single, space-saving footprint. The Edge Series™ ALTES-30 delivers precise electric heat, smooth manual tilting and legendary AccuTemp durability—perfect for large-batch browning, simmering, sautéing, frying and holding.
Key Features
- 30 gal. (114 L) capacity—cook up to 240 lb of ground beef or 45 qt of soup per batch.
- Manual, center-trunnion tilt with self-locking worm gear; rotates > 90° for fast pour-off and easy cleaning.

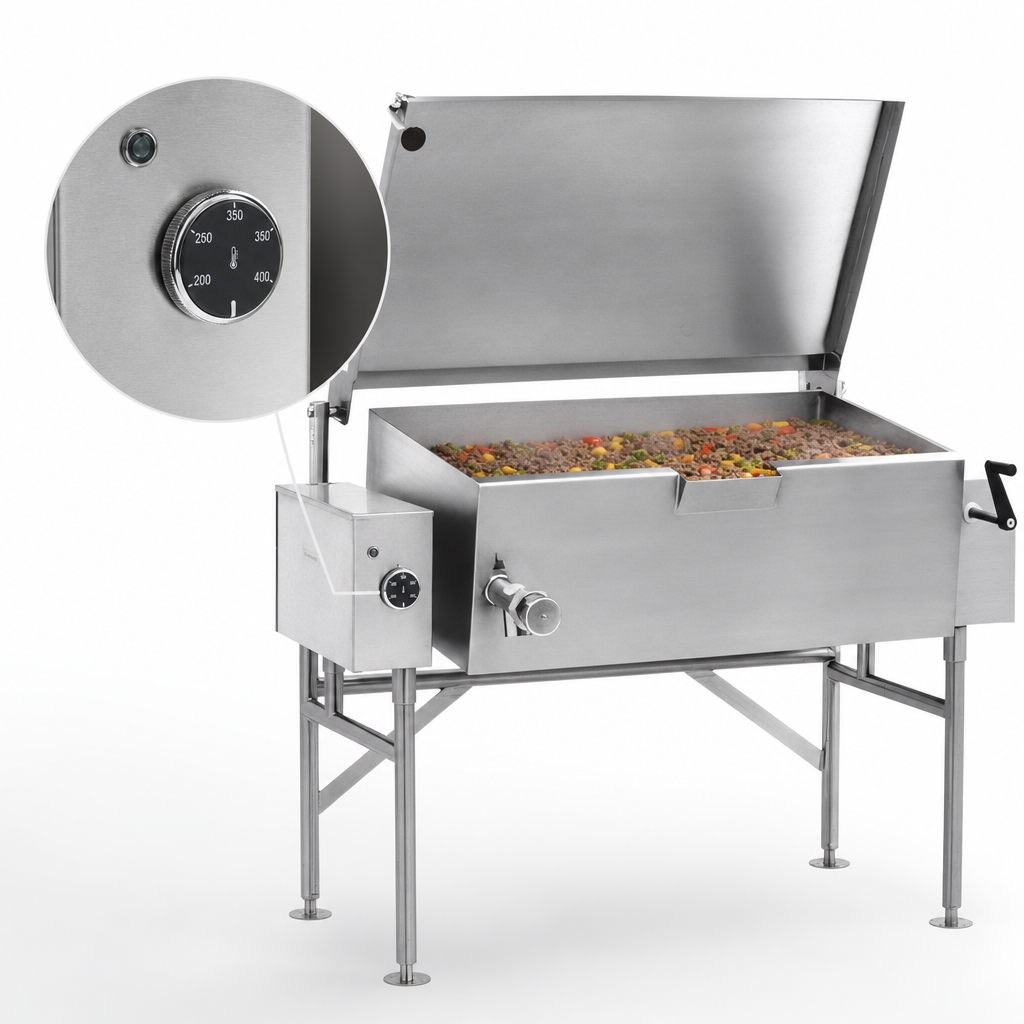

- Thermostatically controlled 175 °F – 400 °F (80 °C – 204 °C) with integrated high-limit safety.

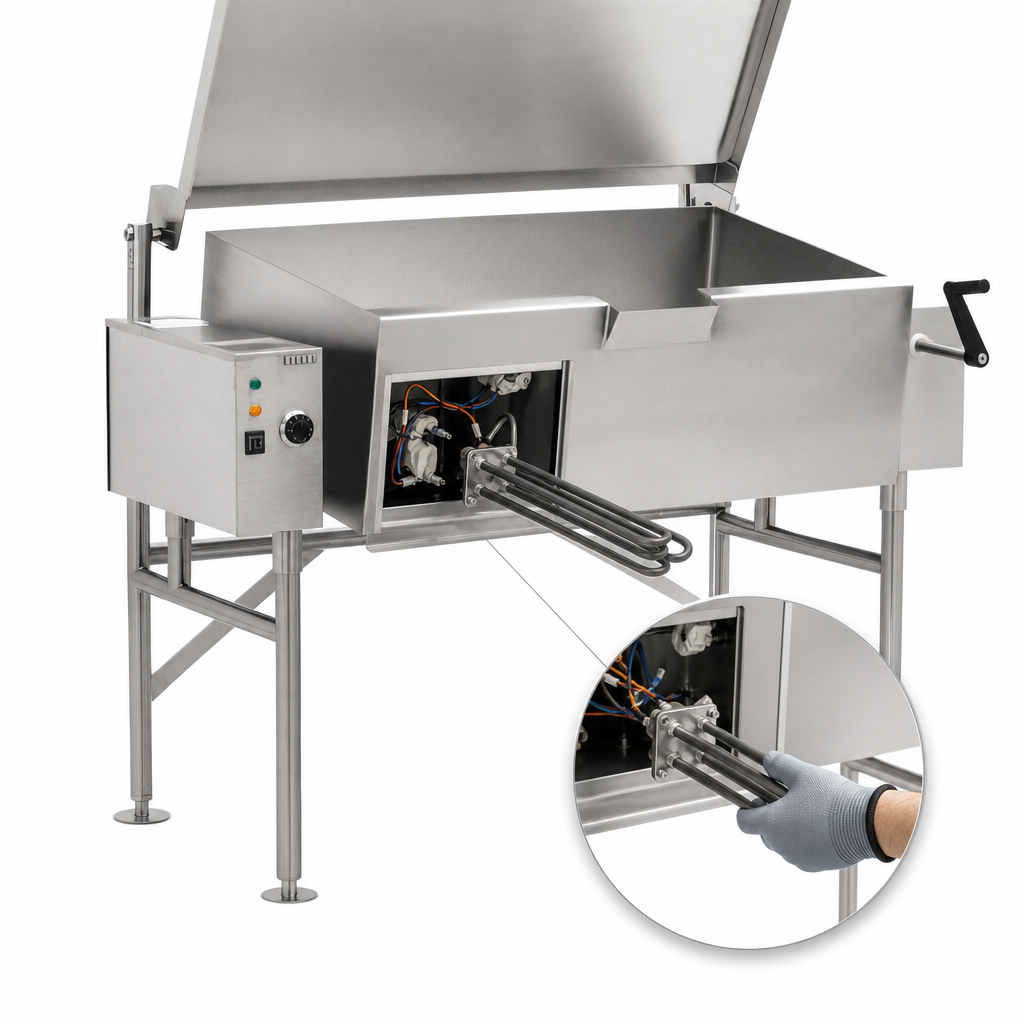

- Field-replaceable electric heating elements minimize downtime and service cost.
- Seam-welded 304 SS pan with clad cooking surface for even heat and simple wipe-down.
- Heavy-duty, actuator-assisted cover featuring:
- Full-width condensate drip shield
- Full-width rear steam vent
- Spring-counterbalanced design for one-hand operation
- Single, side-mounted safety handle
- Water-resistant, reinforced 304 SS control console.
- Open 1 ⅝″ tubular stainless stand with adjustable bullet feet—sanitary, sturdy and easy to level.
- Knock-down construction fits through a 26″ × 66″ doorway for hassle-free installation.
- UL & NSF listed for electrical and sanitation compliance.
Technical Specifications
| Capacity | 30 gal. (114 L) |
|---|---|
| Interior pan depth | 9″ |
| Cooking surface | Clad 304 stainless steel |
| Heat input | 11.8 kW electric (field-replaceable elements) |
| Temperature range | 175 °F – 400 °F (80 °C – 204 °C) |
| Voltage options | 208, 240, 380, 415, 440 or 480 VAC; single or three-phase |
| Current draw @ 208 V | 51.3 A (1 Φ) / 29.6 A (3 Φ-Δ) |
| Tilt mechanism | Manual worm-gear, > 90° pour angle |
| Construction | All-welded 304 SS with coved corners |
| Overall dimensions (W × D × H) | Approx. 46.1″ × 37.5″ × 38.8″* |
| Certifications | UL Listed, NSF |
*Dimensions from manufacturer’s drawing; allow additional clearance for pour path and service access.
Popular Accessories (sold separately)
- 48″ or 60″ flexible spray-hose assembly (vinyl or stainless)
- Perforated cooking/steaming basket (11″ × 20 ½″ × 5″)
- Automatic water-filling meter
- Draw-off valves (1.5″, 2″ or 3″) with matching strainers, hose & #10 can holder
- Casters or adjustable flanged feet with restraining devices
- Pour-lip pan holder & strainer
- Correctional-grade package & restraining kit
- 3-part cleaning tool and full care kit
AccuTemp Peace-of-Mind Warranty
Backed by a 1-year parts & labor warranty and a nationwide network of factory-authorized service partners.
