AccuTemp ALRES-13 Edge Series™ Braising Pans & Tilt Skillets
Description

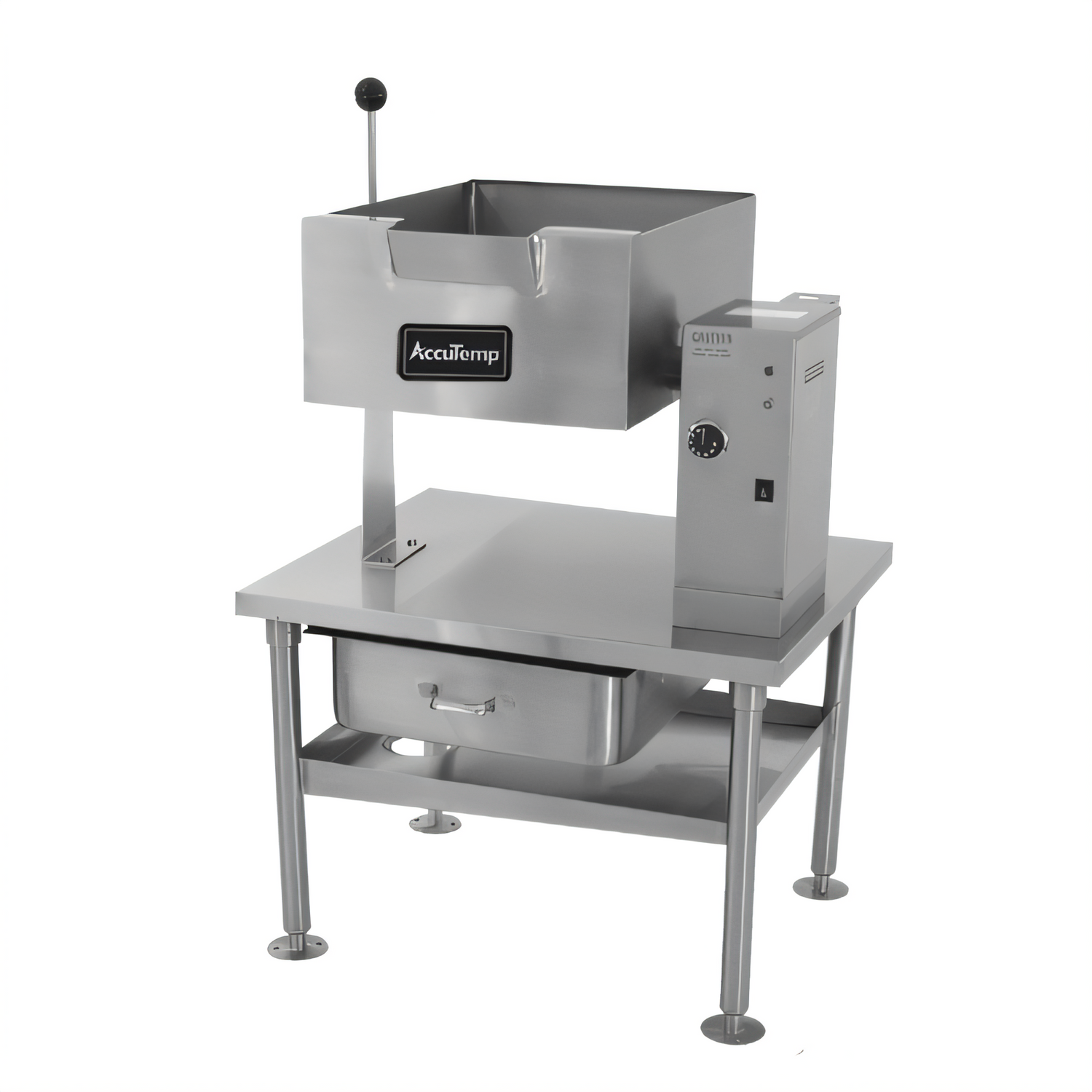

Edge Series™ 13-Gallon Electric Table-Top Tilting Skillet
Model ALRES-13 | AccuTemp • UL & NSF Listed • Made in USABuilt for high-output kitchens that refuse to compromise on durability or precision, the Edge Series™ ALRES-13 delivers 13 gallons of versatile cooking capacity in a compact, table-top footprint. Seam-welded 304 stainless steel, field-replaceable heating elements and a smooth 90°+ manual tilt guarantee years of trouble-free service—whether you’re braising, sautéing, simmering or pan-frying.
Chef-Preferred Advantages

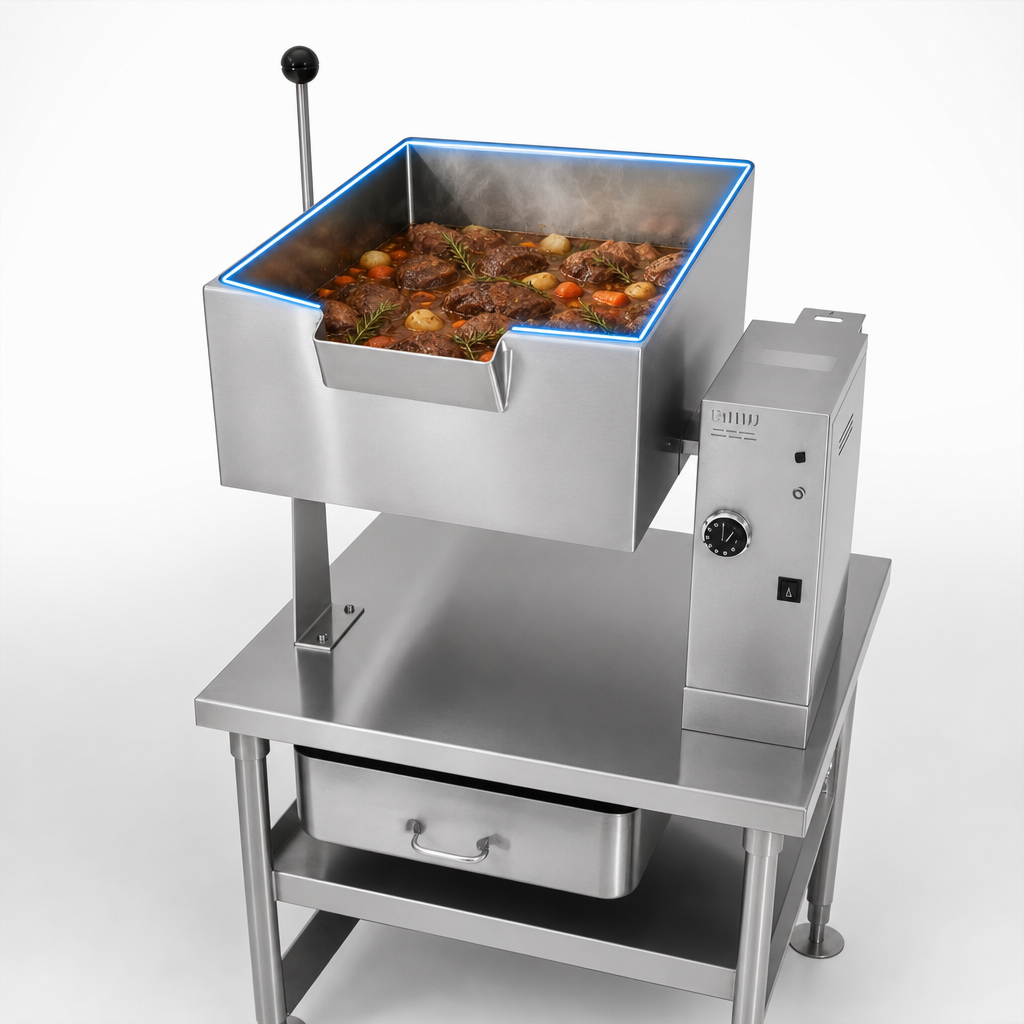

- 13 gal (49 L) pan with coved corners for effortless cleaning and complete product removal.
- Adjustable thermostat 175 – 400 °F (80 – 204 °C) with independent high-limit safety.

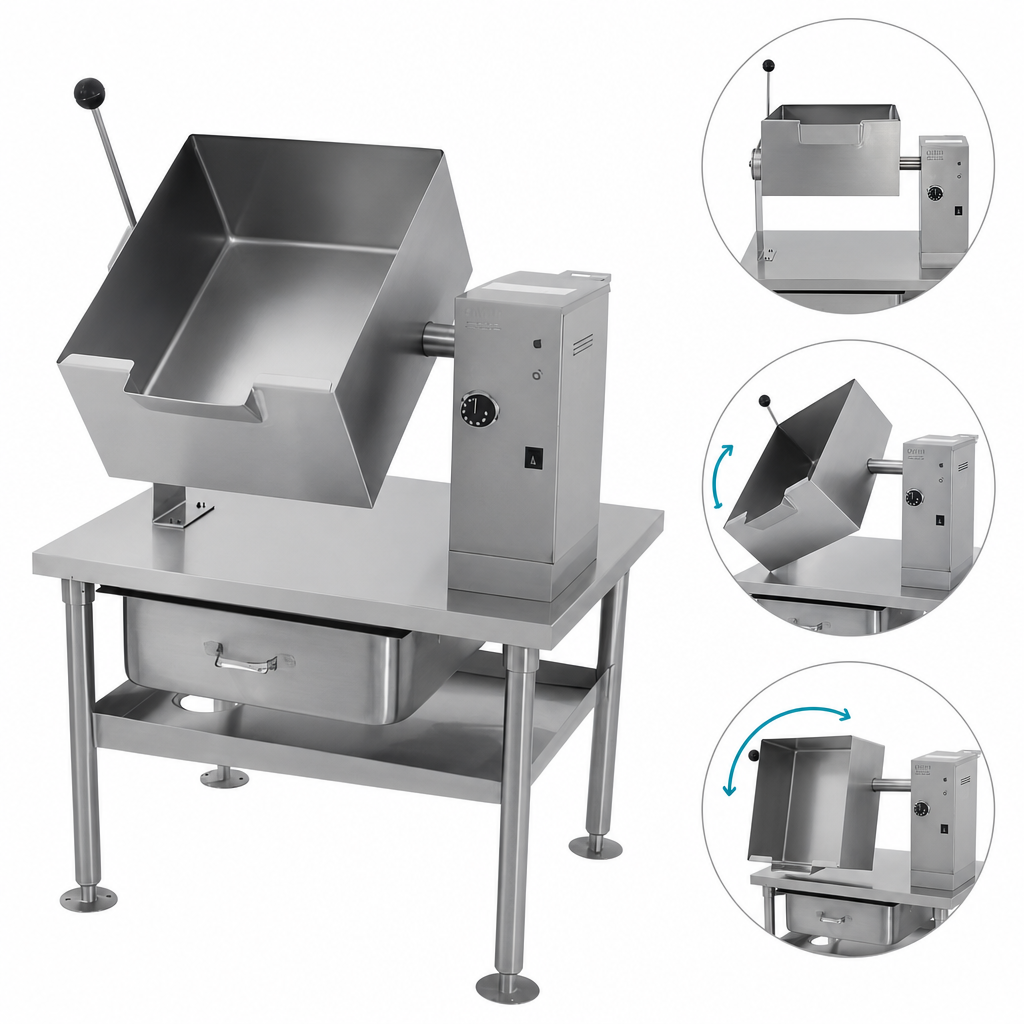

- Center trunnion, self-locking worm-gear tilt mechanism—rotates more than 90° for fast, controlled pour-off.
- Field-replaceable heating elements minimize downtime and service costs.
- Reinforced, water-resistant 304 stainless control console keeps electronics protected.
- Tubular 304 stainless frame with adjustable flanged feet for rock-solid, sanitary installation.
- UL & NSF certifications for open-kitchen peace of mind.
- American-made quality backed by a 1-year parts & labor warranty.
Technical Specifications
| Capacity | 13 gal / 50 qt (≈49 L) |
|---|---|
| Cooking Surface | Seam-welded 304 stainless steel, clad, satin finish |
| Temperature Range | 175 – 400 °F (80 – 204 °C) |
| Heating Power | 6 kW electric, field-replaceable elements |
| Voltage Options (1 ɸ / 3 ɸ) | 208 V (28.8 A / 16.7 A) • 240 V (25.0 A / 14.4 A) • 380 V (15.8 A / 9.1 A) • 415 V (14.5 A / 8.3 A) • 440 V (13.6 A / 7.9 A) • 480 V (12.5 A / 7.2 A) |
| Tilt Mechanism | Manual, self-locking worm gear, 90°+ rotation |
| Overall Dimensions * | Approx. 34.6 W × 25.2 D × 27.3 H in (879 × 640 × 693 mm) |
| Shipping Weight | 240 lb (unit) / 350 lb (mounted on factory table) |
| Certifications | UL, NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
*Dimensions taken from manufacturer drawing; allow additional clearance for tilt handle and plumbing/electrical connections.
Popular Accessories (Sold Separately)
- Single or dual swing-nozzle fill faucets & brackets (12" or 18")
- 48" or 60" flexible spray hose assemblies (vinyl or stainless)
- Automatic water-fill meter
- Perforated cooking/steaming basket (11" × 20½" × 5")
- 12 × 20 food pans—2½", 4" or 6" deep (solid or perforated)
- Flat-bottom scoop & 3-part cleaning tool
- Lift-off cover, restraining device kit & correctional packages
Have questions? Contact AccuTemp at 800-210-5907 or visit accutemp.net.
