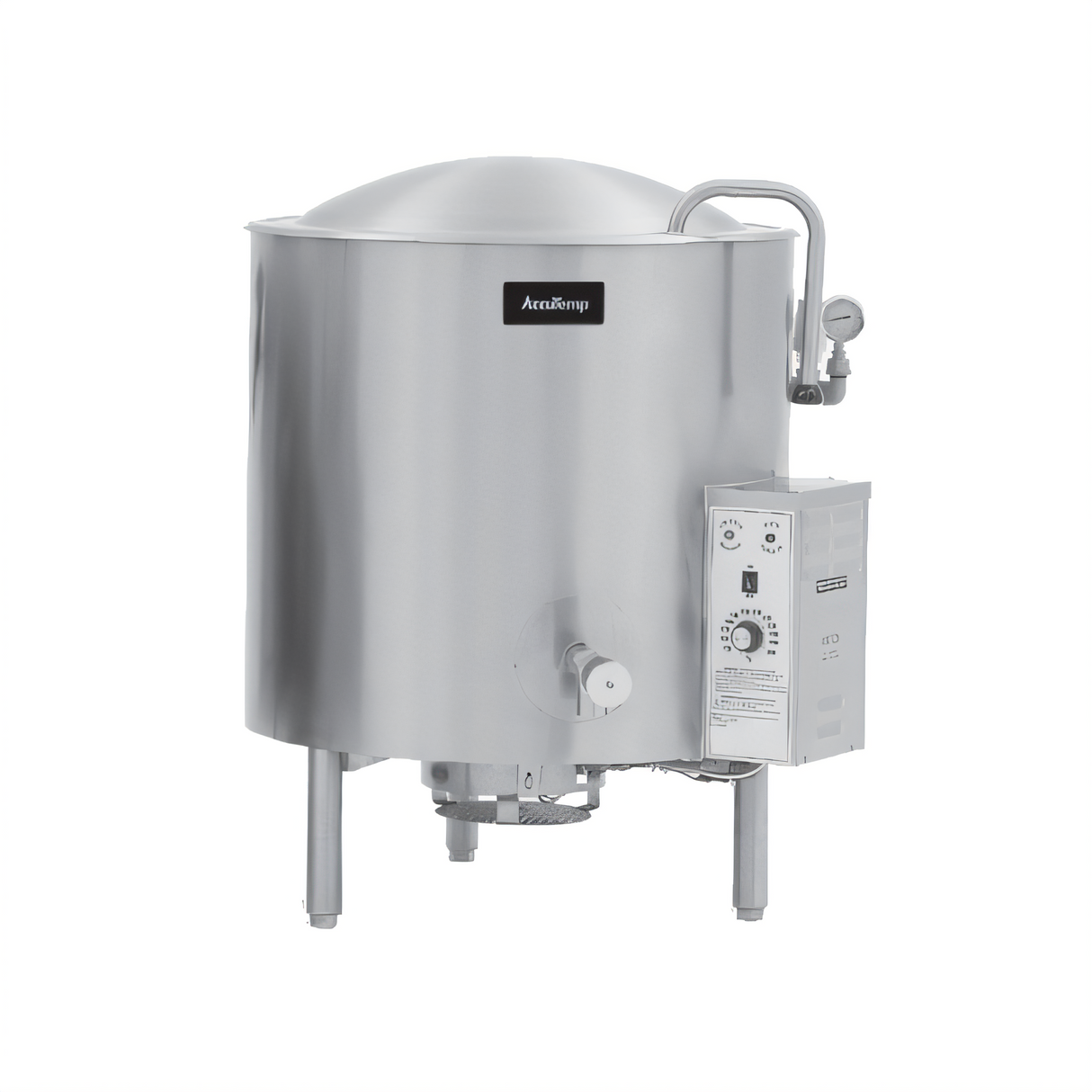

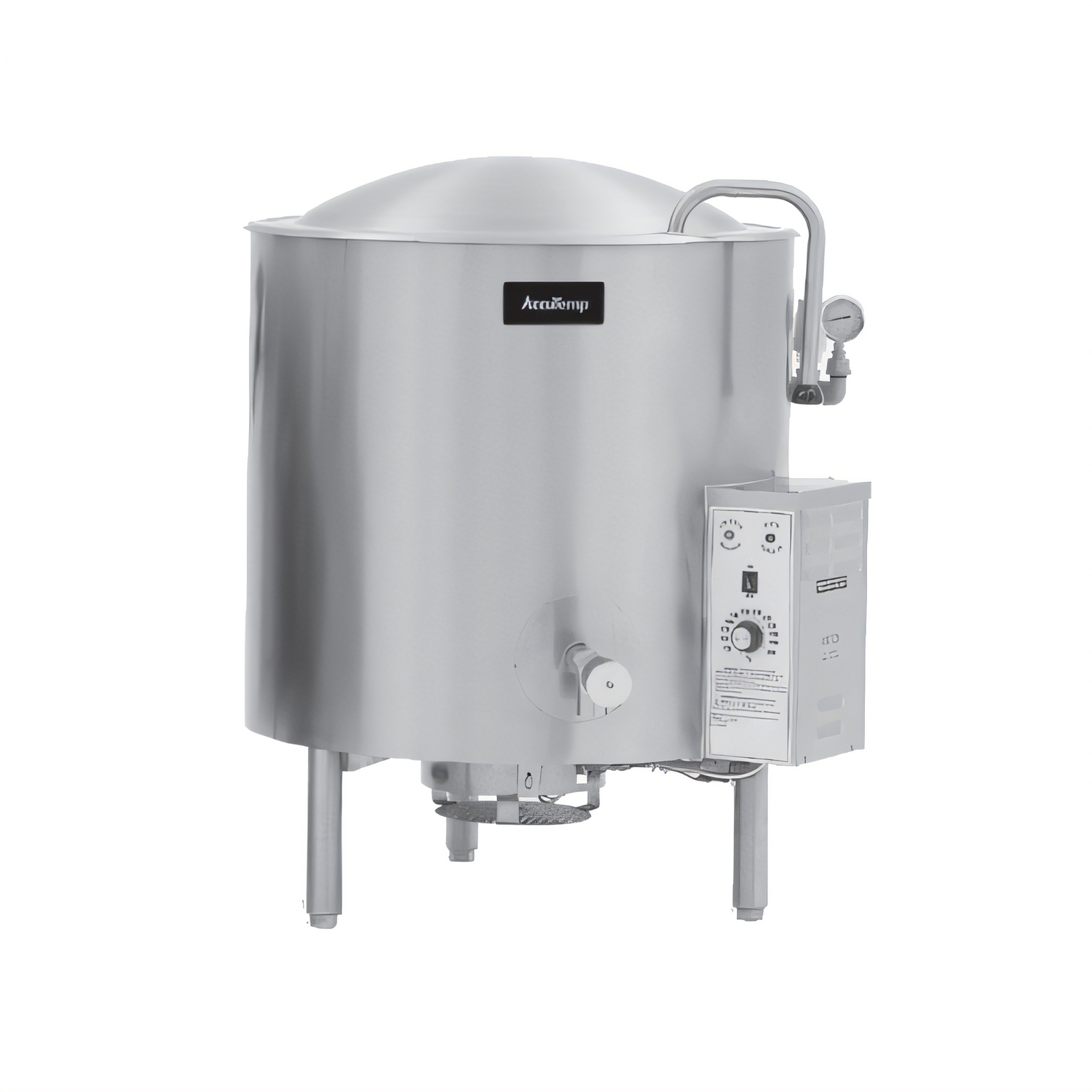

Edge Series™ 20 Gallon Gas Stationary Kettle
Model ALLGB-20F | 2/3 Jacket • 316 SS Liner • Self-ContainedTurn up the volume on soups, sauces, stocks and more with AccuTemp’s Edge Series™ 20 gallon stationary kettle. Built for demanding commercial kitchens, this fully self-contained, insulated unit delivers fast, even heat with rock-solid temperature control—no external boiler required.
Why You’ll Love It
- 316 stainless steel seamless, deep-drawn liner handles acidic foods and wipes clean with ease.

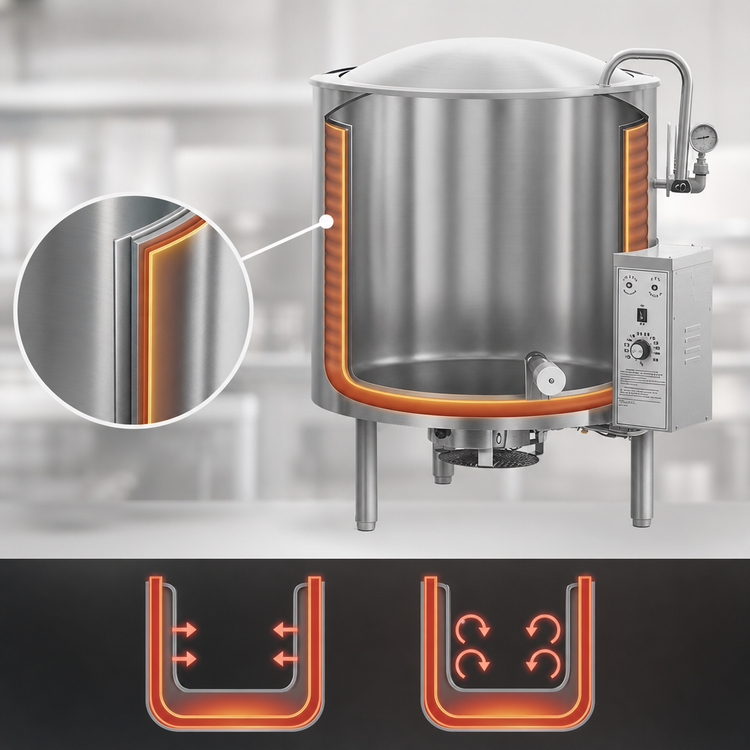

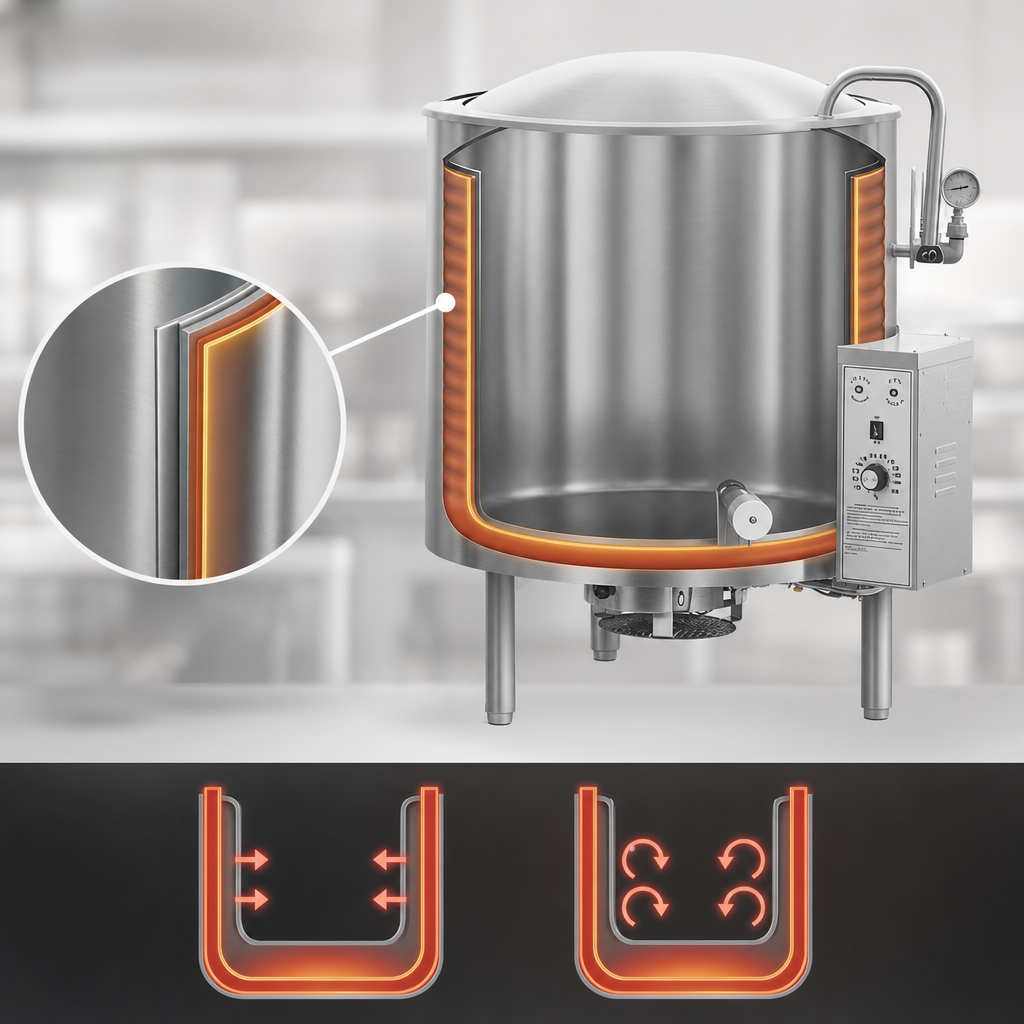

- Energy-efficient 2/3 steam jacket (30 PSI) provides gentle, uniform heat—no scorching.
- Factory-installed full-body insulation keeps exterior surfaces cool and cuts operating costs.
- Automatic electronic ignition (120 V) for quick start-ups; no standing pilot.
- 63,200 BTU gas burner with thermostatic control, 150 – 260 °F (65 – 126 °C).
- Integrated 2″ compression draw-off valve with perforated disc strainer speeds portioning & cleanup.
- One-piece hinged, domed cover reduces condensation drip and lifts effortlessly.
- Comprehensive safety system: pressure relief valve, air eliminator, low-water cut-off & indicator light.
- Leg-mounted design with adjustable bullet feet for simple floor installation.
- UL & NSF listed; proudly Made in the USA.
Technical Specs

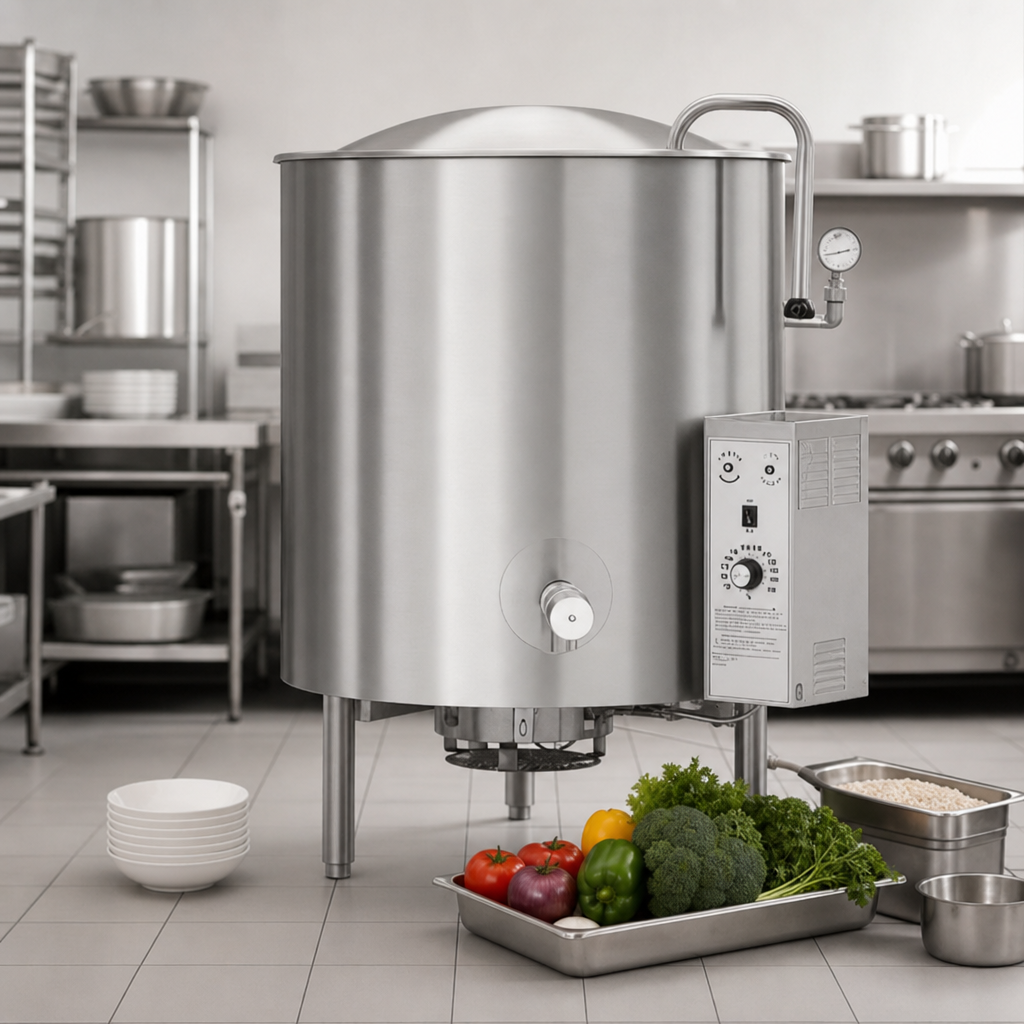

| Capacity | 20 gallons (76 L) |
|---|---|
| Heat Source | Natural or propane gas, 63,200 BTU/hr |
| Jacket Rating | 2/3 jacket, 30 PSI operating pressure |
| Liner Material | 316 stainless steel, seamless deep-drawn |
| Outer Casing & Jacket | 304 stainless steel |
| Ignition / Electrical | Electronic, 120 V/1 ph (208 V & 240 V optional), 1 amp |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Draw-Off Valve | 2″ compression, includes perforated disc strainer |
| Construction | Leg-mounted, insulated, deep-drawn kettle body with seam-welded control console |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 1 year parts & labor (U.S. & Canada) |
Ramp Up Productivity
Add any of these factory-approved accessories (sold separately):
- Single or dual rinse-fill faucets with 12″ or 18″ swing nozzles
- 60″ flexible spray hose assembly (vinyl or stainless)
- Electric timer with buzzer for precise batch control
- 3″ draw-off valve upgrade for chunky products
- Mixing/agitator kit & basket inserts for pasta, seafood and more
Need a different size or custom configuration? The Edge Series™ is available from 15–100 gallons. Contact us for expert assistance.
